Hi folks, I'm using Winshuttle Studio 11.3 and the script is a chain script in three parts.

The first is creating equipment in IE01, the second is CLMM to upload characteristics and the third is an IE02 edit to amend the characteristic status to 1 (the green tick).

It's a script that works well and does the job, there was another script that was developed using looping and IE01 but the format of the load file was deemed to be a pain for the runner's. Everything seems to have gone smoothly with the chain script but now I'm finding that some of the characteristics are not actually being loaded.

The data itself is fine, I've looked at it thoroughly and I can't find a fault anywhere...in fact the behaviour as to what's happening kind of proves the data is fine. I have the same characteristic against the same class using the same value on different equipment numbers within the same load....most of them upload find but 1 or two of them don't. If I rerun the load (the entire chain script), I will get a different result.

I don't know if it makes any difference but it always seems to be the required entry characteristics, from what I can tell all the other characteristics have added fine. Essentially we have a different type characteristic for each class we have, and it's these that seem to have an issue.

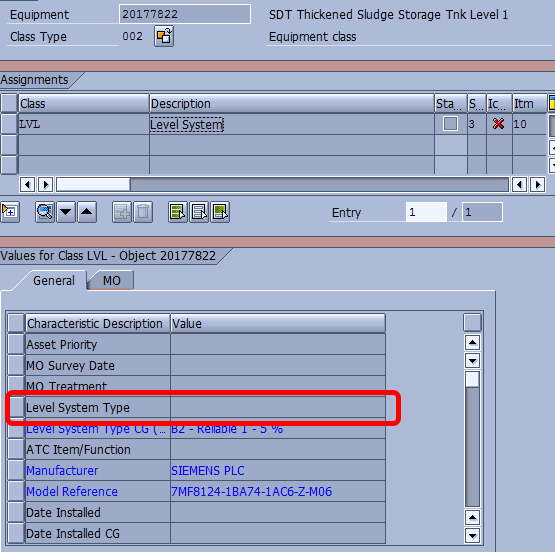

The screenshot below is one of the effected in our QA client, the production version of the same record went in fine. Other's that didn't work correctly in production have worked fine in QA. I've circled the characteristic that should have an entry loaded. I've checked the characteristics themselves and they are configured properly and exactly the same in both SAP clients so that's not the issue.

Can anyone explain this behaviour? I've ran out of analysis options in my head and at this point am totally bemused,



------------------------------
Douglas Cripps |
Welsh Water | [City] |
------------------------------

Hi Douglas -

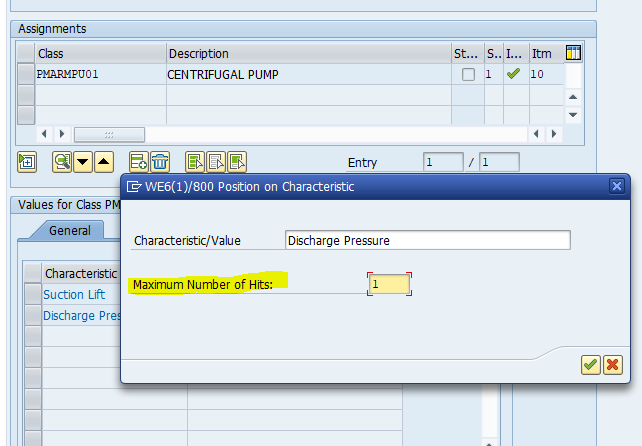

Am I right to assume that you are using the "Position" button on the Classification screen to enter in the characteristic values?  I can see from your screenshot that you have a couple characteristics that have similar names, namely the two that start with Level System and Date Installed.  Since there are a couple that have similar names, if you use the position button you are likely to end up with a pop-up screen asking you which one you want to select.  What you would want to ensure is that you are returning only 1 result, by setting the maximum number of hits to 1.  This should keep things consistent and avoid that pop-up screen.


Thank you,
Jennifer

------------------------------
Jennifer Hwang | SE
Winshuttle North America
------------------------------

Original Message:
Sent: 11-06-2018 06:03
From: Douglas Cripps
Subject: Transaction upload incomplete and inconsistant

Hi folks, I'm using Winshuttle Studio 11.3 and the script is a chain script in three parts.

The first is creating equipment in IE01, the second is CLMM to upload characteristics and the third is an IE02 edit to amend the characteristic status to 1 (the green tick).

It's a script that works well and does the job, there was another script that was developed using looping and IE01 but the format of the load file was deemed to be a pain for the runner's. Everything seems to have gone smoothly with the chain script but now I'm finding that some of the characteristics are not actually being loaded.

The data itself is fine, I've looked at it thoroughly and I can't find a fault anywhere...in fact the behaviour as to what's happening kind of proves the data is fine. I have the same characteristic against the same class using the same value on different equipment numbers within the same load....most of them upload find but 1 or two of them don't. If I rerun the load (the entire chain script), I will get a different result.

I don't know if it makes any difference but it always seems to be the required entry characteristics, from what I can tell all the other characteristics have added fine. Essentially we have a different type characteristic for each class we have, and it's these that seem to have an issue.

The screenshot below is one of the effected in our QA client, the production version of the same record went in fine. Other's that didn't work correctly in production have worked fine in QA. I've circled the characteristic that should have an entry loaded. I've checked the characteristics themselves and they are configured properly and exactly the same in both SAP clients so that's not the issue.

Can anyone explain this behaviour? I've ran out of analysis options in my head and at this point am totally bemused,



------------------------------
Douglas Cripps |
Welsh Water | [City] |
------------------------------

HiJennifer

I know this is an old thread. But wanted to say thank for posting. I had been having some issues with adding characteristic data on a IE01 Script for creating new equipment and using the "position" button sorted it! Previously when scrolling down it was overwriting the first 10 rows of characteristic data but the position allowed it to move on to the next lines.

Thanks again!
Lauren   ​​

------------------------------
Lauren Simpson | Systems Specialist
BP Limited (UK) | 07917886316
------------------------------
