  • 1.  Survey Control - WMS Layer

    Posted 19 days ago
    Good morning;

    I have added Queensland SURVEY CONTROL WMS service as a live WMS layer from the following link:

    https://gisservices.information.qld.gov.au/arcgis/services/Location/SurveyControl/MapServer/WMSServer?request=GetCapabilities&service=WMS

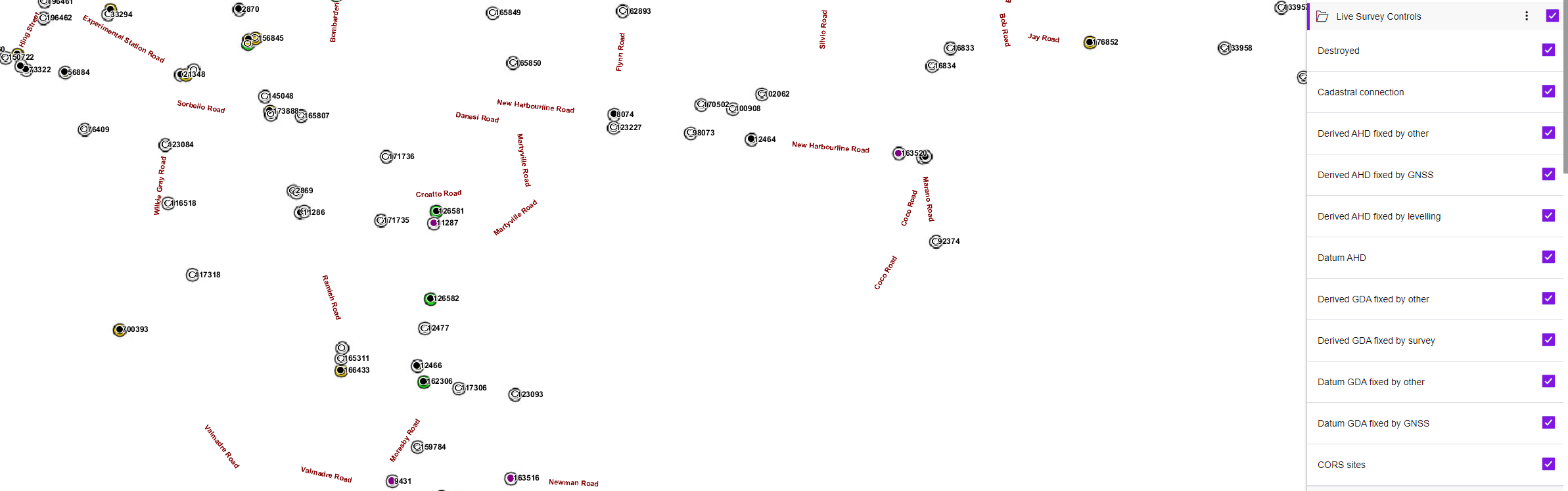

    It works fine as WMS service in SSA as shown in the following image:

    But, how can get rid of this white background?
    Is there other ways to use WFS if it is found? Or, can we some how to manipulate WMS service?
    Or I have to download the layer itself? Or anything else?

    Thank you.

    Best regards,

    Ayman

    ------------------------------
    Ayman Hamzeh
    Cassowary Coast Regional Council
    INNISFAIL QLD
    ------------------------------


  • 2.  RE: Survey Control - WMS Layer

    Posted 18 days ago
    Edited by Duri Bradshaw 18 days ago
    Hi Ayman,

    Have you tried setting the image format to image/png?

    You can change the format when adding/editing the External WMS in Spatial Manager

    I have seen this white background when using image/jpg, JPG generally doesn't have an alpha channel (translucently) and should really only be used for aerial imagery or other complete coverage layers where there is a lot of colour variance which is well suited to jpg compression. PNG on the other hand is well suited to images with few colours or if you need translucency.

    ------------------------------
    Duri Bradshaw
    Spatial IT Consultant
    Insight GIS
    ------------------------------



  • 3.  RE: Survey Control - WMS Layer

    Posted 17 days ago
    Good morning Duri;

    You are the best. I really appreciate it.
    I was going to call you after this post if I do not get an answer.

    I did not try it before. I tried it now to PNG format and works perfectly.

    Thank you much.

    Cheers,

    Ayman


    ------------------------------
    Ayman Hamzeh
    Cassowary Coast Regional Council
    INNISFAIL QLD
    ------------------------------
