MapInfo Pro

Hi all.
There was a problem when exporting to PDF one object with a specific fill.

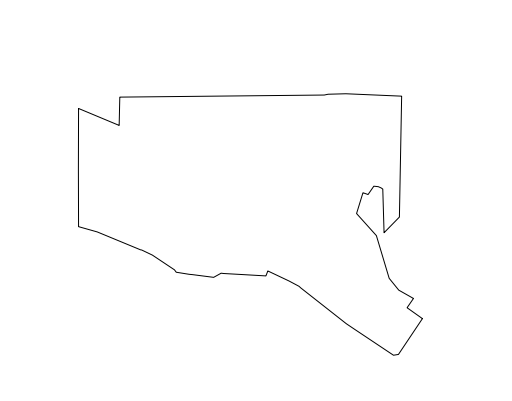

1. A polygon of this shape is exported without problems.

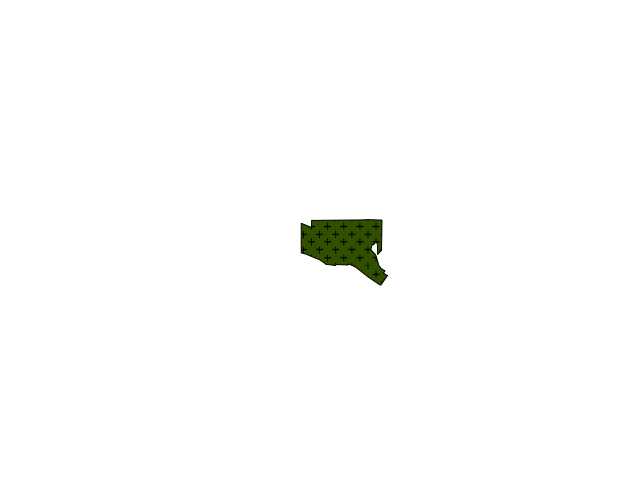

2.Adding a Fill

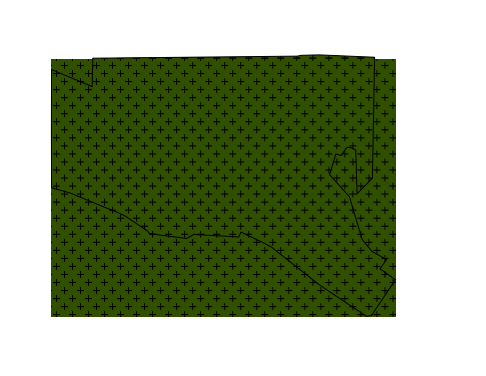

3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Hi Max

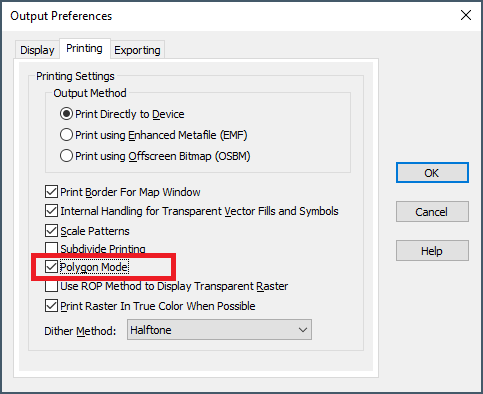

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data
------------------------------

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Hello, unfortunately this does not help.
If the polygon with such a fill is small, then everything is fine.

When an object is enlarged in the report window, such a problem appears.
This applies to this fill and some others.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Original Message:
Sent: 09-29-2022 03:27
From: Peter Møller
Subject: pdf export problem

Hi Max

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Hi

Can you share that specific polygon - or do you see it with any polygon?
Also, send through a workspace with the map you are exporting.

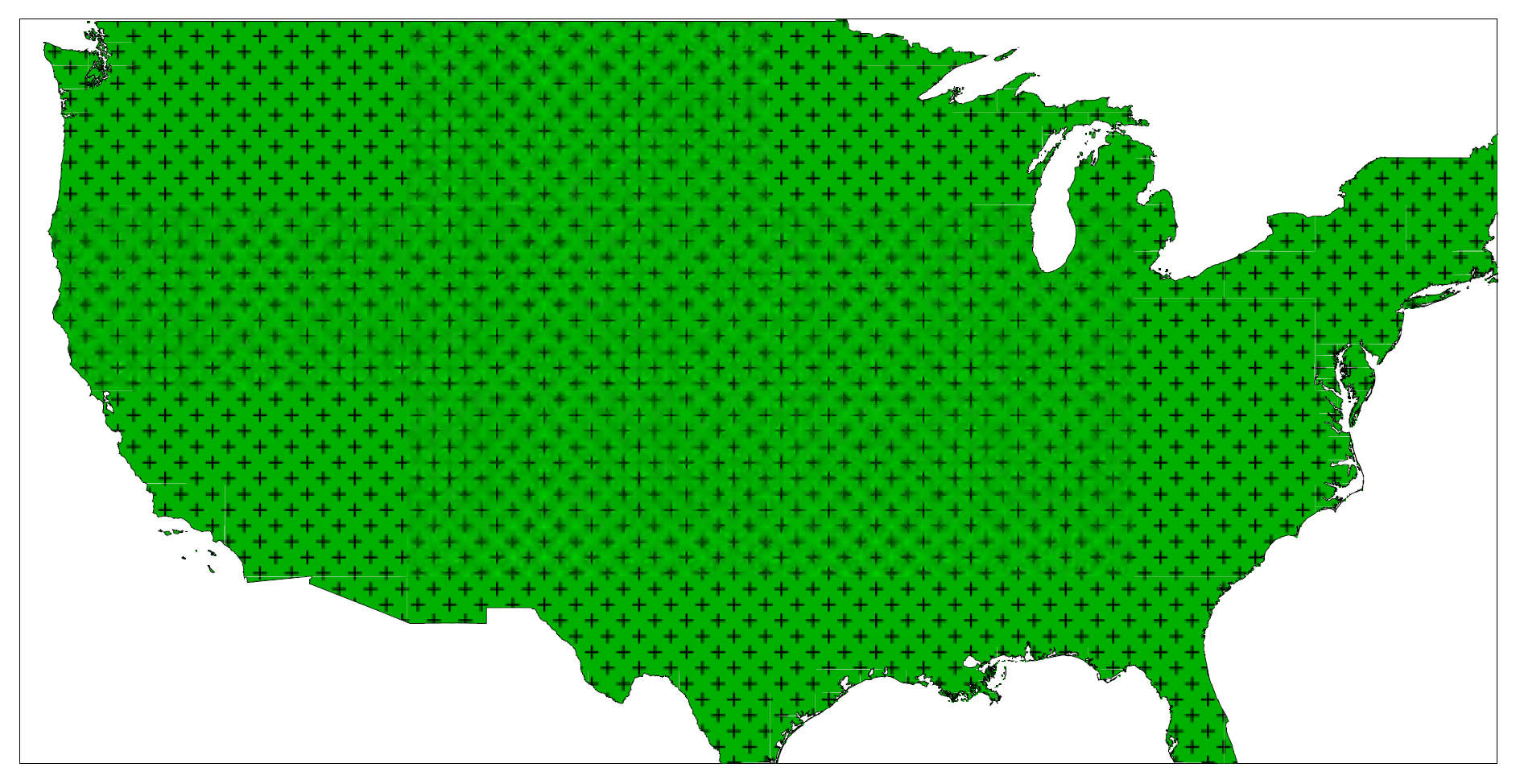

I tried with a similar polygon but here the pattern stays inside.


------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data
------------------------------

Original Message:
Sent: 09-30-2022 05:17
From: Max Map
Subject: pdf export problem

Hello, unfortunately this does not help.
If the polygon with such a fill is small, then everything is fine.

When an object is enlarged in the report window, such a problem appears.
This applies to this fill and some others.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO

Original Message:
Sent: 09-29-2022 03:27
From: Peter Møller
Subject: pdf export problem

Hi Max

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

PS: You can also try reaching out to our support team at support@precisely.com.

They can look you over the shoulder via a screen sharing call and suggest a solution.

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data
------------------------------

Original Message:
Sent: 09-30-2022 05:52
From: Peter Møller
Subject: pdf export problem

Hi

Can you share that specific polygon - or do you see it with any polygon?
Also, send through a workspace with the map you are exporting.

I tried with a similar polygon but here the pattern stays inside.

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-30-2022 05:17
From: Max Map
Subject: pdf export problem

Hello, unfortunately this does not help.
If the polygon with such a fill is small, then everything is fine.

When an object is enlarged in the report window, such a problem appears.
This applies to this fill and some others.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO

Original Message:
Sent: 09-29-2022 03:27
From: Peter Møller
Subject: pdf export problem

Hi Max

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

I'm sorry for the long answer.
Here he is.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Original Message:
Sent: 09-30-2022 05:52
From: Peter Møller
Subject: pdf export problem

Hi

Can you share that specific polygon - or do you see it with any polygon?
Also, send through a workspace with the map you are exporting.

I tried with a similar polygon but here the pattern stays inside.

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-30-2022 05:17
From: Max Map
Subject: pdf export problem

Hello, unfortunately this does not help.
If the polygon with such a fill is small, then everything is fine.

When an object is enlarged in the report window, such a problem appears.
This applies to this fill and some others.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO

Original Message:
Sent: 09-29-2022 03:27
From: Peter Møller
Subject: pdf export problem

Hi Max

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

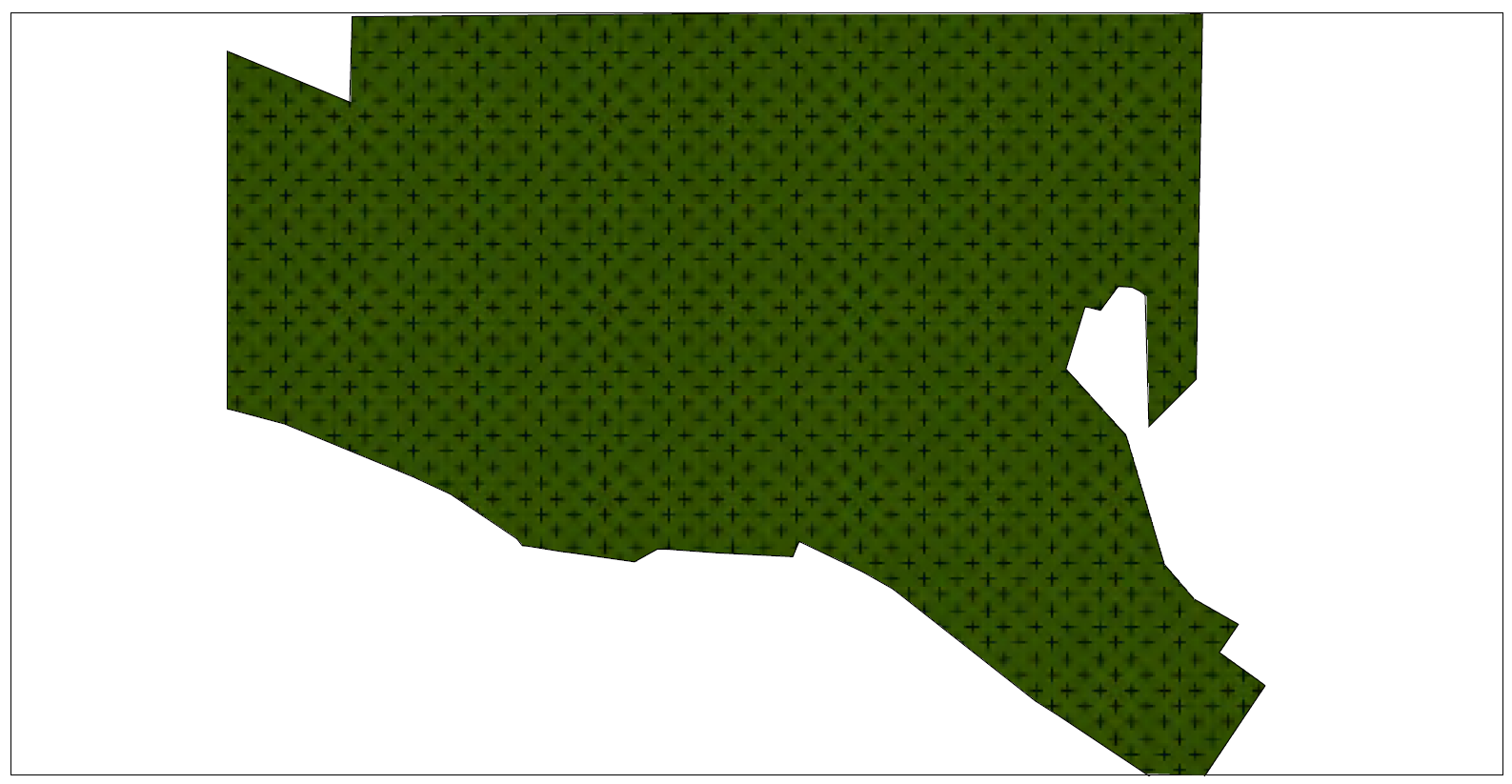

I can import this polygon and print to a PDF with no problems.
I think you need to reach out to our support as there are two many parameters here to can influence the result.


------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data
------------------------------

Original Message:
Sent: 10-03-2022 06:38
From: Max Map
Subject: pdf export problem

I'm sorry for the long answer.
Here he is.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO

Original Message:
Sent: 09-30-2022 05:52
From: Peter Møller
Subject: pdf export problem

Hi

Can you share that specific polygon - or do you see it with any polygon?
Also, send through a workspace with the map you are exporting.

I tried with a similar polygon but here the pattern stays inside.

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-30-2022 05:17
From: Max Map
Subject: pdf export problem

Hello, unfortunately this does not help.
If the polygon with such a fill is small, then everything is fine.

When an object is enlarged in the report window, such a problem appears.
This applies to this fill and some others.

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO

Original Message:
Sent: 09-29-2022 03:27
From: Peter Møller
Subject: pdf export problem

Hi Max

Can you try to enable Polygon Mode on the Printing tab in the Output Preference dialog?
You can get to this on the Options tab via the Pro tab.

Does this help?

------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Hi.

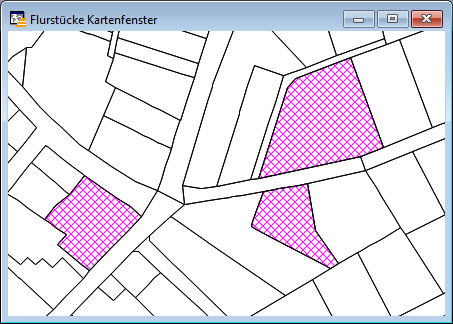

I got similar problems



and could solve them -as far as I remember- with following settings:

- I disabled "advanced rendering" (dialog: map options)

- I added a background color to the pattern (when using "style override")


Best regards

Oliver

------------------------------
Oliver Best
AGIS Anwender-Geo-Informations-Systeme GmbH
Bad Homburg
------------------------------

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Thank you. That was the problem.
Just turn off advanced rendering in map settings did not work, but:
creation of a new map and layout with advanced rendering turned off worked.

Also I found this - Resolve fill styles extending outside the bounds of a polygon in Print to PDF output

.wor file - Set Window FrontWindow() ScrollBars Off Autoscroll On Snap Mode On Enhanced Off

------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------

Original Message:
Sent: 10-04-2022 02:39
From: Oliver Best
Subject: pdf export problem

Hi.

I got similar problems



and could solve them -as far as I remember- with following settings:

- I disabled "advanced rendering" (dialog: map options)

- I added a background color to the pattern (when using "style override")


Best regards

Oliver

------------------------------
Oliver Best
AGIS Anwender-Geo-Informations-Systeme GmbH
Bad Homburg

Original Message:
Sent: 09-28-2022 06:37
From: Max Map
Subject: pdf export problem

Hi all.
There was a problem when exporting to PDF one object with a specific fill.
1. A polygon of this shape is exported without problems.
2.Adding a Fill
3. Change the scale, the gap disappears
When using PostScript Emulation, everything is also fine, but when rendering a large map, the time increases greatly.
How can I fix this without using PostScript Emulation?


------------------------------
Max Map
Knowledge Community Shared Account
Shelton CO
------------------------------
