Happy #MapInfoMonday!
This is a follow-up article to last week's post on preparing tables for Telco Site analysis. Last week, I showed how you can use a script in the SQL Window to load an Excel file with data about telco sites automatically and create sectors from this file.
I also referred to some additional ideas that came up in my call with AT&T when showing this process.
So today, I wanted to improve the initial script to also create an alternative visualization of the antenna information.
There is often more than a single antenna mounted on the telco towers. They often point in different directions, but you can also have multiple antennas pointing in the same direction. We even saw this in last week's article, where I offset the antennas based on their Antenna Group ID.

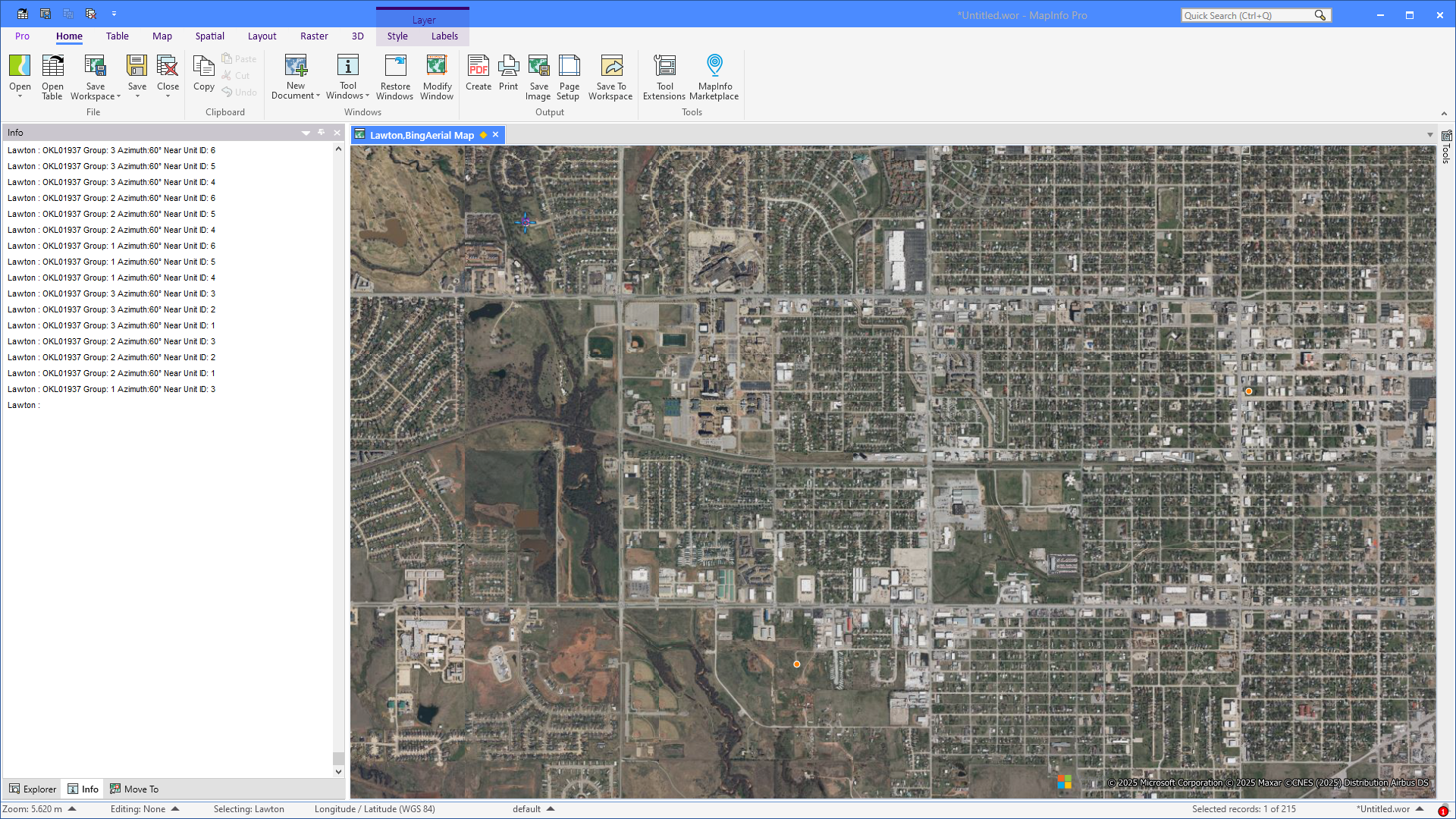

But sometimes, this isn't enough. As you can see in the example below, one of the sites I clicked on has many antennas of different types pointing in the same direction. All the 16 antennas listed point in the same direction.

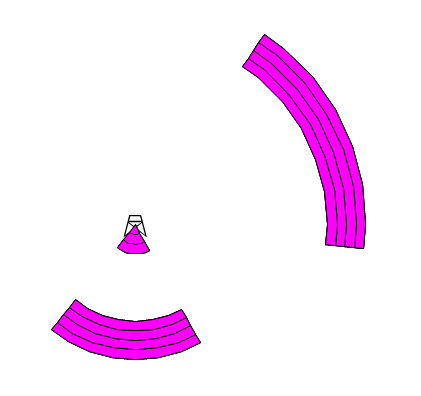

So how do you display all these on a map? AT&T already had the answer to this: Instead of showing each antenna as a circular sector, they were showing them as doughnut sectors. That's rings around the site pointing in the direction of the antenna.
The second change is creating a new table and converting the existing points to rings. I also specify a style for the rings so that they stand out from the other sectors.
sTabFile = Left$(sTabFileSite, Len(sTabFileSite) - 4) + " Sectors2.TAB"
sTabSector2 = PathToTableName$(sTabFile)
Commit Table sTabSite As sTabFile
Open Table sTabFile
Set Style Brush (2, 16711935, 0)
Set Style BorderPen MakePen (1, 2, 0)
Update sTabSector2
Set Obj = DTCreateAnnulusSector(OBJ, DTNorth2MathAngle(Azimuth)
, (AntennaNearUnitId - 1) * fRadiusAnnulus
, AntennaNearUnitID * fRadiusAnnulus
, Horizontal_Beam_Width, 36, 2)
Commit Table sTabSector2
The function DTCreateAnnulusSector used above is from DrawTools. This means that DrawTools must be running for the script to work. Annulus is another word for a doughnut or ring. It takes the same parameters as the function DTCreateCircularSector that I used in last week's article. But it also takes an additional parameter: The width of the ring or annulus.
Finally, I also changed the Map From statement to include the new table.
Map From sTabSite, sTabSector2, sTabSector
Set Map Layer sTabSite
Label With iuantAntennaModelNumber+ " " + Azimuth+Chr$(176)
+ " W:" + Horizontal_Beam_Width+Chr$(176)
+ " Group: " + AntennaUnitGroupId
+ " Tilt: " + electricalAntennaTilt+Chr$(176)

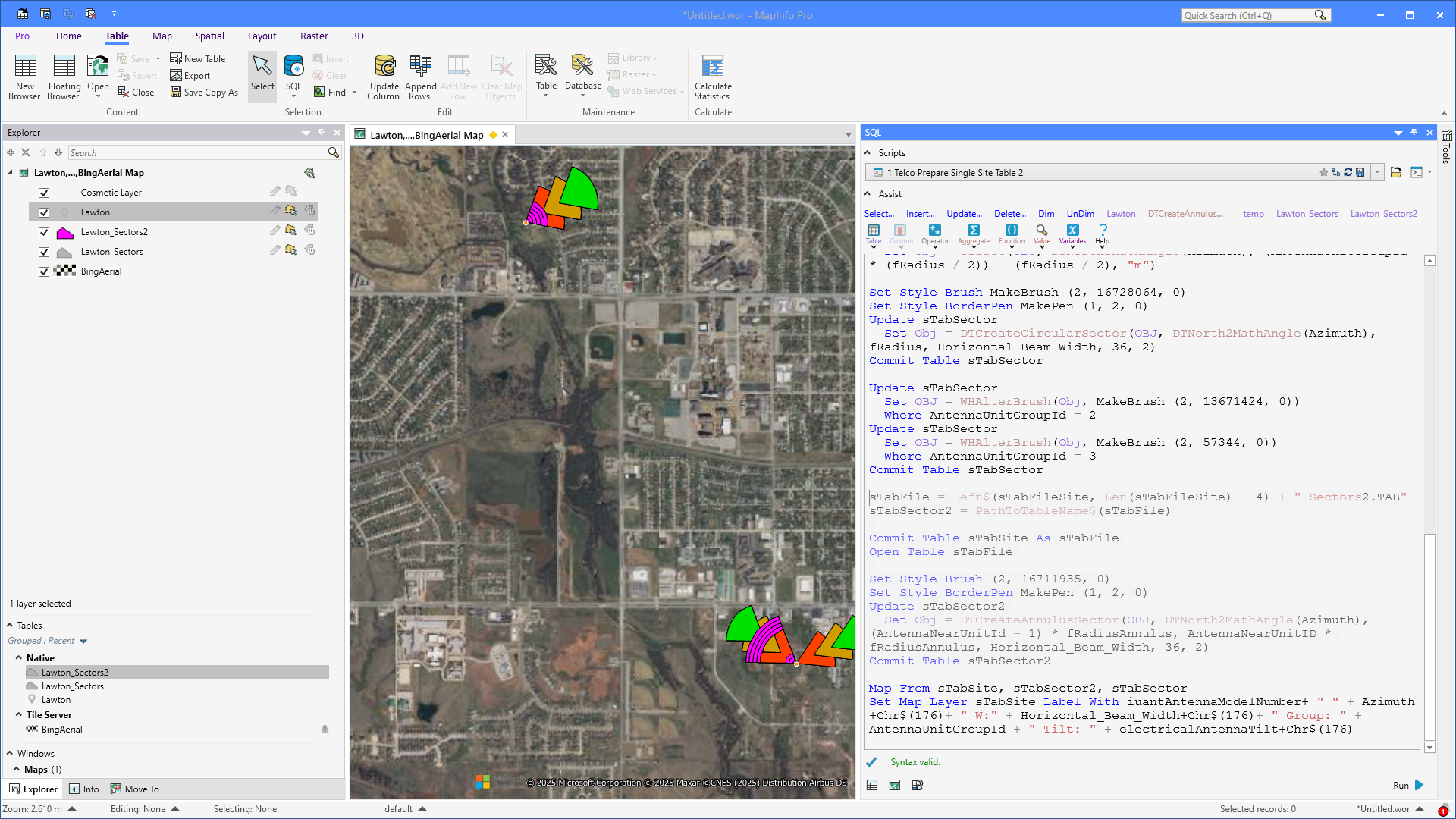

Below you can see the resulting rings in a map with the sectors. The values I'm using to offset the rings are not continuous, and therefore, you can see that the rings appear in groups with spaces in between. The position for the same value will, however, be the same across the sites, so comparing these between sites is possible.
I hope you find this useful.
------------------------------
Peter Horsbøll Møller
Principal Presales Consultant | Distinguished Engineer
Precisely | Trust in Data
------------------------------
