I have been looking to write this article since the beginning of the year.

@Ryan Cook asked a question about calculating the line direction. He was looking for a way to understand the direction of the dual carriageways. He wanted to update these with the compass direction (N, S; E, & W) they were heading in. To do this, he needed to know the direction they were heading.

The answer involved the DrawTools add-in from the MapInfo Marketplace and a registered function from this tool.

Happy #MapInfoMonday - or should I say Merry #MapInfoMonday?

Calculating the Direction of a (Poly)line

The direction of a line can be useful when working with spatial data, especially if the line direction is intentional. For a road, it can illustrate the direction of the traffic, that is, for a one-way road, of course. For a river, it can illustrate the flow of the water. Same with a water or sewer pipe, it can illustrate the flow of water in the pipe. These are just a few examples.

The DrawTools add-in exposes a custom MapBasic function to the MapInfo Pro interface, allowing MapInfo Pro users to benefit from this function. This is how the add-in exposes the function. The RBNregisterFunctionAsPublic() function can be found in the RIBBONLib module.

nResult = RBNRegisterFunctionAsPublic("OBJDirection", "DTLineDirection", "Calculates the direction of a (poly)line, East is zero, counter-clockwise")

When you register a custom function as a public function, you can give it an alias. Above, you can see that I have chosen to give the alias DTLineDirection to the function OBJDirection. The prefix DT refers to DrawTools.

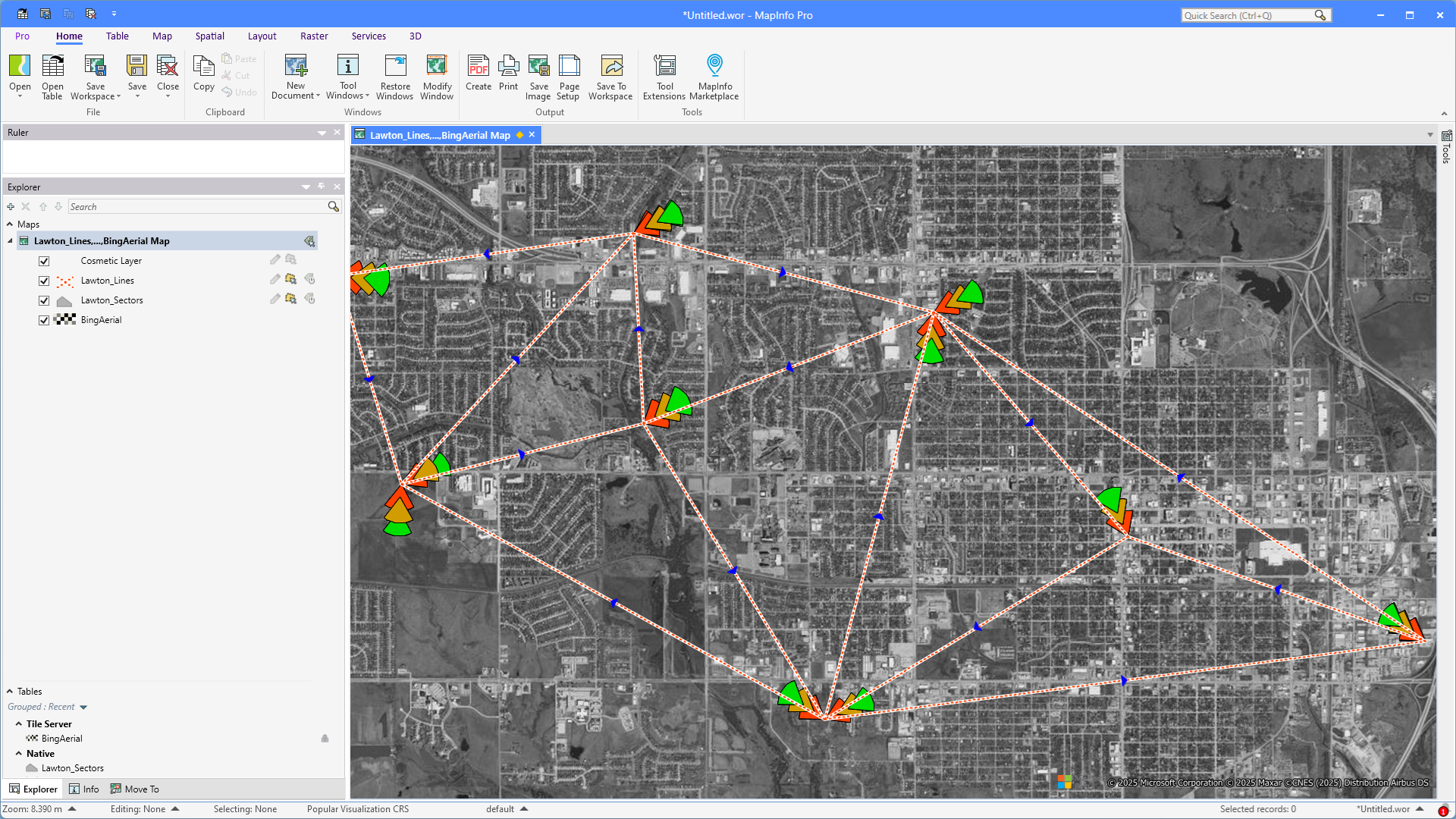

When you calculate the direction of a simple line, you calculate the direction from the first coordinate pair to the second coordinate pair.

For polylines, it can be a bit trickier. A polyline can hold several line segments, so which segment would you calculate the direction based on? Or would you calculate the direction from the first node in the first segment to the last node in the last segment? I decided to keep it simple and only calculate a direction for polylines with one segment.

The exposed function grabs the coordinate pairs from the object passed to the function, and then it calls another function to do the actual calculation of the direction from the coordinate pair: MATHGetDirection().

Now, here's something you probably didn't know about me: Math isn't my superpower. I have always thought that there must be a better way than this. So maybe one of you can come up with a better formula for calculating the direction?

Here is the formula that I used, and have used for years:

'*******************************************************************************
Function MATHGetDirection(ByVal fStartX As Float, ByVal fStartY As Float, ByVal fEndX As Float, ByVal fEndY As Float) As Float

Dim	fDirection As Float

OnError GoTo ErrorOccured

MATHGetDirection = 0

	'//Checking for vertical dirction
	If (fEndX - fStartX) = 0 Then
		'//not allowed to divide by zero...
		If fEndY > fStartY Then
			MATHGetDirection	= 90	'degrees
		Else
			MATHGetDirection	= 270	'degrees
		End If
		Exit Function
	End If

	'//Checking for horisontal dirction
	If (fEndY - fStartY) = 0 Then
		If (fEndX < fStartX) Then
			MATHGetDirection = 180	'degrees
		ElseIf (fEndX > fStartX) Then
			MATHGetDirection = 0	'degrees
		End If
		Exit Function
	End If

	fDirection = Atn((fEndY - fStartY) / (fEndX - fStartX)) * RAD_2_DEG	'//Converting from RAD to Degrees

	If (fEndX < fStartX) And (fEndY > fStartY) Then
		'tEnd is northwest of tStart
		fDirection = fDirection + 180	'degrees
	ElseIf (fEndX < fStartX) And (fEndY < fStartY) Then
		'tEnd is southwest of tStart
		fDirection = fDirection + 180	'degrees
	End If

	MATHGetDirection = MATHGetValidDirection(fDirection)

	Exit Function
'-------------------------
ErrorOccured:
	Call ERRCreate(Err(), Error$(), "MATHGetDirection")
	Call ERRShow()

End Function

'*******************************************************************************
Function MATHGetValidDirection(ByVal fDirection As Float) As Float

OnError GoTo ErrorOccured

MATHGetValidDirection = fDirection

	'//fDirection should be less than or equal to 360 degress
	Do Until fDirection <= 360
		fDirection = fDirection - 360	'//degrees
	Loop
	'//fDirection should be more than or equal to 0 degress
	Do Until fDirection >= 0
		fDirection = fDirection + 360	'//degrees
	Loop

MATHGetValidDirection = fDirection

	Exit Function
'-------------------------
ErrorOccured:
	Call ERRCreate(Err(), Error$(), "MATHGetValidDirection")
	Call ERRShow()

End Function

The two functions can also be found in the MATHLib module.

Please note that these functions will calculate the direction in the way MapInfo Pro deals with angles/directions. East is 0 degrees, North is 90 degrees, West is 180 degrees, and South is 270 degrees.

Anyway, once you have downloaded and installed DrawTools from the MapInfo Marketplace, you will have access to several functions registered by DrawTools, such as DTLineDirection().

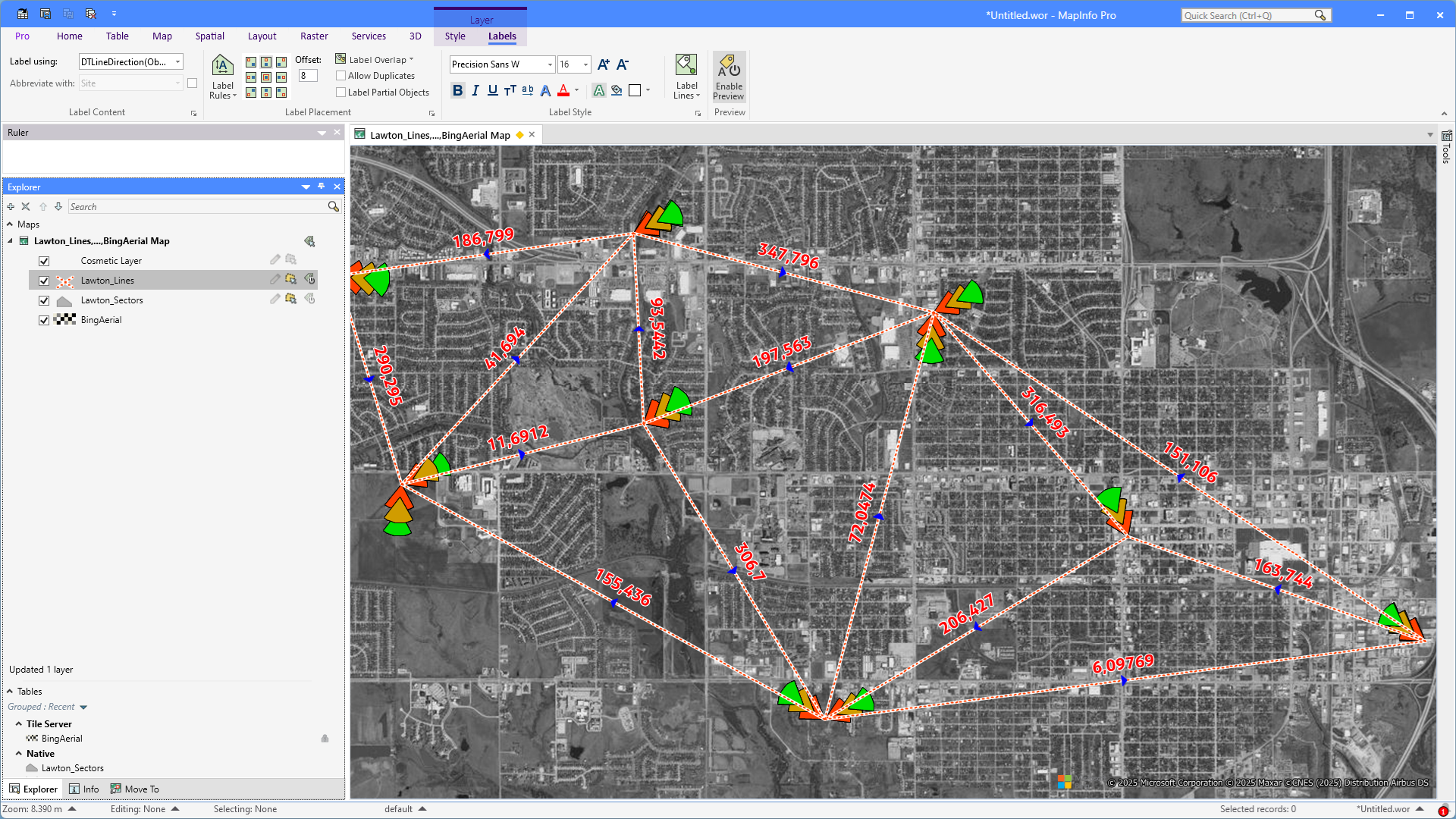

This function can be used to update a column with the direction, or you can label your lines with the direction.

In the Expression dialog, you can find the DTLineDirection function in the Functions list. Now position the cursor inside the parentheses and simply type OBJ or pick it from the Columns list. It's not important if you use the keyword OBJ or Object as you can see in the image.

Click the OK button to close the dialog and then turn on Auto Labels for your layer.

I hope you found this useful.

------------------------------
