  • 1.  MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Employee
    Posted 20 days ago
      |   view attached

    Last week, @Mayca González Pérez raised a question about inserting legends into his layout using MapBasic.

    I gave a generic answer, but it can be a bit hard to adapt it to fit his MapBasic code and variable names. So today, I decided to adapt my code to his.

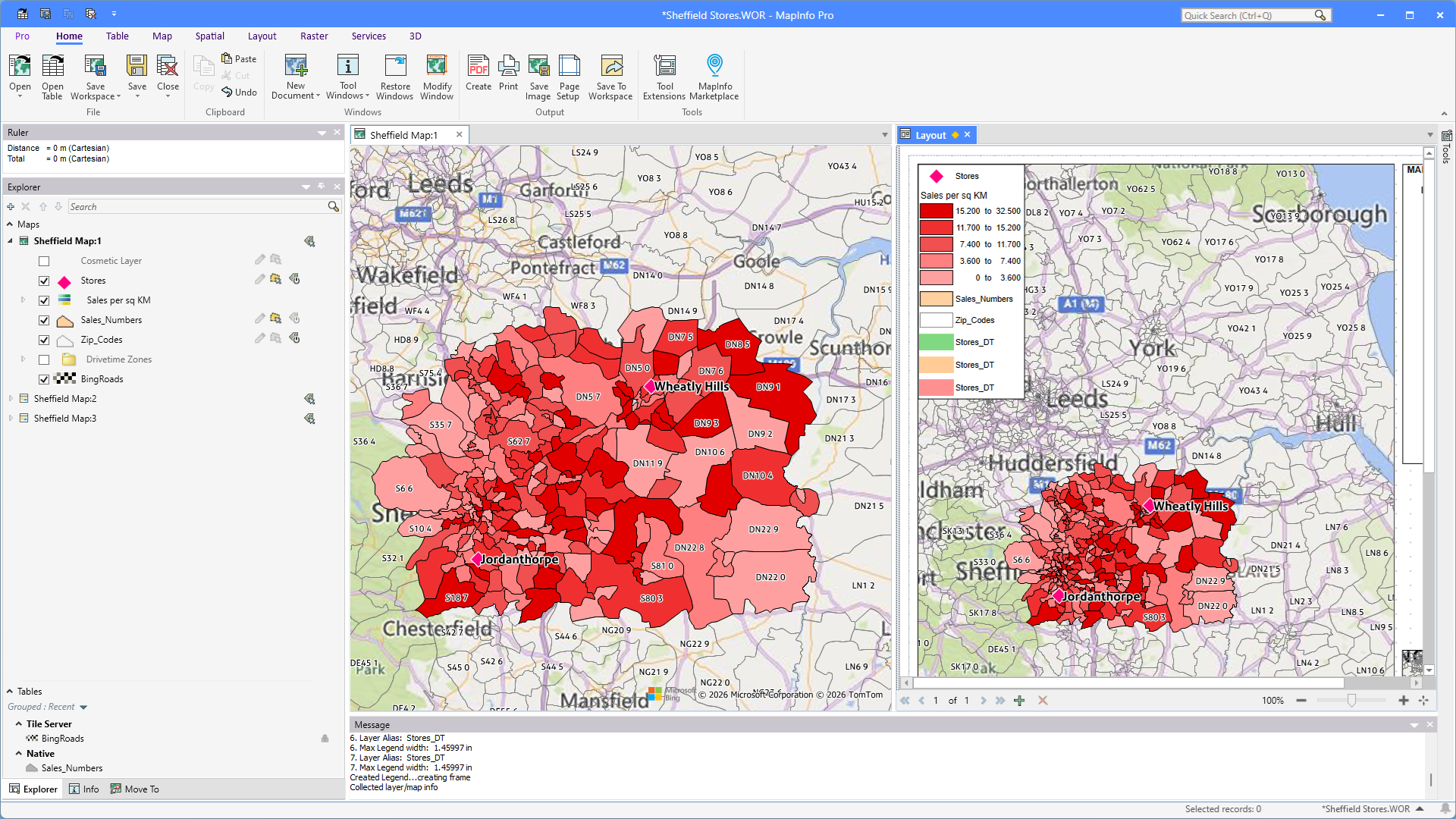

    The resulting layout looks like this.

    Let me walk you through the steps:

    Getting the Map Window Frame ID

    The existing code already created a frame for the map window and inserted a clone of an existing map window into it.
    'Insert Map into Layout
Create Frame Into Window nLayoutID (margen, margen)  (ancho-franja, alto-banda)
    'Pen (1,2,0) Brush (2, 16777215, 16777215)
    From Window nMapID
    FillFrame On

nMapIDInLayout = WindowID(0)

    I just added a single line of code to this to capture the ID of the frame holding the main map

    nMapFrameID	= LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS)

    I need this later on to be able to insert the legends over this frame.

    Capture the Location of the Map Window Frame

    I use the Frame ID that I captured above to now find the location of the top left corner of this frame. I also capture the heigh and width of the frame.

    '## Finding the top left corner of the map frame and inserting the legends from this location
fFrameX		= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_POS_X)
fFrameY		= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_POS_Y)
fFrameWidth	= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_WIDTH)
fFrameHeight	= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_HEIGHT)

fFramePositionY	= fFrameY

    These values will be used to position the legends as I start inserting these.

    This also means that if you want to place your legends elsewhere on the layout, you can set a different position here.

    Inserting the Legends

    Now I loop over the layers in the main map window and create a legend for each of these, as long as they are normal layers or thematic layers.

    For the first layer, I use Create Designer Legend:

    Create Designer Legend
	From Window nMapIDInLayout
	Default Frame Style "#" Font ("Arial",0,8,0)
	Custom
	Frame From Layer nLayer
		Position (fFrameX, fFramePositionY) Units "in"
		Using Column Object Label default
nLegendWID =  LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_LEGEND_DESIGNER_WINDOW)

    I set the Default Frame Style, which will affect the other legends created as well.

    I use the current values for the legends to position the legend, and I set it to use the Object to control the style.

    Finally, I read the Legend Window ID, so that I can reference this for the remaining layers.

    For the remaining layers, I use Add Designer Frame to add to the existing frame; otherwise, it uses the same legend settings:

    Add Designer Frame
	Window nLegendWID
	Custom
	Frame From Layer nLayer
		Position (fFrameX, fFramePositionY) Units "in"
		Using Column Object Label default

    Finally, I capture and calculate the position of the next frame and the maximum width of the frames so far.

    fFramePositionY	= fFramePositionY + LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_HEIGHT)
fLegendWidth		= LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_WIDTH)
fLegendWidthMax	= Maximum(fLegendWidthMax, fLegendWidth)

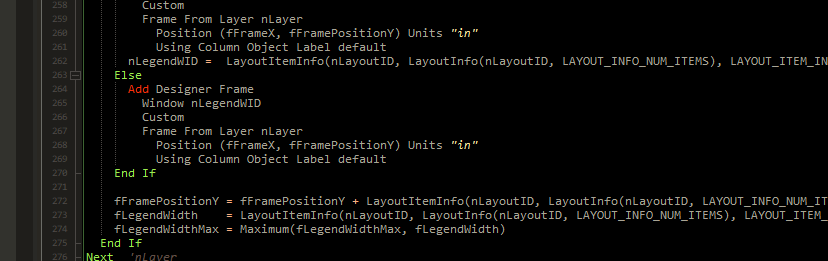

    Here is the full source code related to inserting legends:

    '## Inserting a legend for each layer in the map
nNumLayers	= MapperInfo(nMapIDInLayout, MAPPER_INFO_LAYERS)
For nLayer = 1 to nNumLayers
	If LayerInfo(nMapIDInLayout, nLayer, LAYER_INFO_TYPE) In (LAYER_INFO_TYPE_NORMAL, LAYER_INFO_TYPE_THEMATIC) Then
		sLayerAlias	= LayerInfo(nMapIDInLayout, nLayer, LAYER_INFO_ALIAS)
		Print nLayer & ". Layer Alias:  " & sLayerAlias
		'Create Designer Legend
		'	From Window 3018
		'	Portrait
		'	Default Frame Style "Stores" Font ("Arial",0,8,0)
		'	Frame
		'		From Layer 1 Using column object label default

		If nLegendWID = 0 Then
			Create Designer Legend
				From Window nMapIDInLayout
				Default Frame Style "#" Font ("Arial",0,8,0)
				Custom
				Frame From Layer nLayer
					Position (fFrameX, fFramePositionY) Units "in"
					Using Column Object Label default
			nLegendWID =  LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_LEGEND_DESIGNER_WINDOW)
		Else
			Add Designer Frame
				Window nLegendWID
				Custom
				Frame From Layer nLayer
					Position (fFrameX, fFramePositionY) Units "in"
					Using Column Object Label default
		End If

		fFramePositionY	= fFramePositionY + LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_HEIGHT)
		fLegendWidth		= LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_WIDTH)
		fLegendWidthMax	= Maximum(fLegendWidthMax, fLegendWidth)
	End If
Next  'nLayer

    I ned the creation of the legends by inserting a rectangle under the legends so that the map underneath is hidden.

    '## Create frame to sit behind legend and create white space
Create Rect (fFrameX, fFrameY) (fFrameX + fLegendWidthMax, fFramePositionY)
	Pen (1,2,0)
	Brush (2,16777215,16777215)
	Priority 1

    Variables

    I also added several variables, which I merged into the existing variables of the program.

    Below, you can see the variables that I added without the existing variables:

    Dim nMapFrameID, nLayer, nNumLayers, nLegendWID As Integer
Dim sLayerAlias as String
Dim	fFrameX, fFrameY, fFramePositionY, fFrameWidth, fFrameHeight, fLegendWidth, fLegendWidthMax As Float

    The Final Source Code

    Here is the full adapted sourcecode. I have also attached the full source code in the form of a zipped mb file.

    I had to comment out a few calls to additional procedures that I didn't have access to, to make the program run.

    I also commented out the creation of the logo map and the north arrow map. I would suggest inserting the logo as an image, as that is now supported. The north arrow can be inserted as a point with a north arrow symbol if you prefer.

    Include "MapBasic.def"

Declare Sub Main
Declare Sub TEMATICO_INFRAESTR_VIARIA

Dim gblNOMBRE_MUNICIPIO, gblNOMBRE_NUCLEO As String
Dim num_win_localizacion As Integer

Sub Main
	Call TEMATICO_INFRAESTR_VIARIA
End Sub

Sub TEMATICO_INFRAESTR_VIARIA

OnError GoTo errorTematicoViaria

'1) Cargar configuración guardada
'2) Cargar parámetros geométricos
'3) Crear layout con tamaño correcto
'4) Aplicar formato impresora
'5) Insertar frames usando coordenadas parametrizadas

Dim nMapID, nMapIDInLayout, nLayoutID, nLegendID, nMapFrameID, nLayer, nNumLayers, i, nLegendWID As Integer
Dim strTitulo, strStatement, cmdstr, str_tit_principal, str_tit_leyenda, sLayerAlias as String
Dim	fFrameX, fFrameY, fFramePositionY, fFrameWidth, fFrameHeight, fLegendWidth, fLegendWidthMax As Float

strTitulo = "MUNICIPIO: "+gblNOMBRE_MUNICIPIO+chr$(13)+"NÚCLEO:"+gblNOMBRE_NUCLEO
'Call CARGAR_PARAM_TEMATICOS

'Set Printer Name gblThematicPrinter

''##### ASIGNANDO NOMBRE DEL MUNICIPIO ENCUESTADO Y RUTA DE ARCHIVOS ###############
'Call TEMATICO_CARGAR_PARAMETROS

str_tit_principal = WindowInfo(FrontWindow(), WIN_INFO_NAME)

'**Let's find a map window to insert
For i = 1 To NumWindows()
    If WindowInfo(WindowID(i), WIN_INFO_TYPE) = WIN_MAPPER Then
      nMapID = WindowID(i)
      Exit For
    End If
Next
Print "Map: " & WindowInfo(nMapID, WIN_INFO_NAME)
num_win_localizacion = nMapID

Dim strMapName As String
Dim strMunicipio As String
Dim strNucleo As String
Dim strTematico As String
Dim posGuion As Integer
Dim posAsterisco As Integer

strMapName = WindowInfo(nMapID, WIN_INFO_NAME)

posGuion = InStr(1, strMapName, " - ")
posAsterisco = InStr(1, strMapName, "*")

If posGuion > 0 Then
    strMunicipio = Left$(strMapName, Len(posGuion) - 1)
End If

If posAsterisco > 0 Then
    strNucleo = Mid$(strMapName, posGuion + 3, posAsterisco - (Len(posGuion) + 3))
    strTematico = Mid$(strMapName, posAsterisco + 1, Len(strMapName) - posAsterisco)
End If

'Create Layout window
Layout Designer
    Position (0.0,0.0) Units "in"
'    Width pWidth  Height pHeight  Units "in"

nLayoutID = FrontWindow()
Set Layout
    Window nLayoutID
    Extents To Fit Zoom 100

Set CoordSys Layout Units "in"
Set Paper Units "In"

'Call TEMATICO_FORMATO_IMPRIMIR_PAPEL

Dim ancho As Float
Dim alto As Float

ancho = LayoutInfo(nLayoutID, LAYOUT_INFO_WIDTH)
alto  = LayoutInfo(nLayoutID, LAYOUT_INFO_HEIGHT)

Dim margen As Float
Dim franja As Float
Dim banda As Float

margen = ancho * 0.03          ' 3% margen
franja = ancho * 0.18          ' 18% franja derecha
banda  = alto * 0.10           ' 10% banda superior

'Insert Map into Layout
Create Frame Into Window nLayoutID (margen, margen)  (ancho-franja, alto-banda)
    'Pen (1,2,0) Brush (2, 16777215, 16777215)
    From Window nMapID
    FillFrame On

nMapIDInLayout = WindowID(0)
nMapFrameID	= LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS)
'num_win_principal = nMapID

'Call TEMATICO_CAPAS_AUXILIARES

Dim colX1 As Float
Dim colX2 As Float
Dim zonaY1 As Float
Dim zonaY2 As Float
Dim bloqueAltura As Float
Dim logoY1 As Float
Dim logoY2 As Float
Dim textoY1 As Float
Dim textoY2 As Float

logoY1 = zonaY1
logoY2 = zonaY2 - 2*bloqueAltura

textoY1 = logoY2
textoY2 = logoY2 + (bloqueAltura * 0.40)

colX1 = ancho - franja + margen/2
colX2 = ancho - margen/2

zonaY1 = margen
zonaY2 = alto - banda

bloqueAltura = (zonaY2 - zonaY1) / 3

Dim alturaTotal As Float
Dim hLoc As Float
Dim hNorte As Float
Dim hLogo As Float
Dim hTexto As Float

colX1 = ancho - franja + margen/2
colX2 = ancho - margen/2

zonaY1 = margen
zonaY2 = alto - banda

alturaTotal = zonaY2 - zonaY1

hLoc   = alturaTotal * 0.35
hNorte = alturaTotal * 0.20
hLogo  = alturaTotal * 0.25
hTexto = alturaTotal * 0.20

Dim yActual As Float
yActual = zonaY2

'LOCALIZACIÓN
'Create Frame Into Window nLayoutID (colX1, zonaY2 - 2*bloqueAltura)  (colX2, zonaY2)
Create Frame Into Window nLayoutID (colX1, yActual - hLoc) (colX2, yActual)
    Pen (1,2,0)
    Brush (2,16777215,16777215)
    From Window num_win_localizacion
    FillFrame On

yActual = yActual - hLoc

'NORTE
'Create Frame Into Window nLayoutID (colX1, zonaY2 - 2*bloqueAltura)  (colX2, zonaY2 - bloqueAltura)
'Create Frame Into Window nLayoutID (colX1, yActual - hNorte) (colX2, yActual)
'    Pen (1,2,0)
'    Brush (2,16777215,16777215)
'    From Window num_win_norte
'    FillFrame On
'yActual = yActual - hNorte

'LOGO
'Create Frame Into Window nLayoutID  (colX1, zonaY1) (colX2, zonaY2 - 2*bloqueAltura)
'Create Frame Into Window nLayoutID (colX1, yActual - hLogo) (colX2, yActual)
'    Pen (1,2,0)
'    Brush (2,16777215,16777215)
'    From Window num_win_logo
'    FillFrame On

yActual = yActual - hLogo
'MUNICIPIO

Create Rect Into Window nLayoutID (colX1, zonaY1) (colX2, yActual)
    Pen (1,2,0)
    Brush (2,16777215,16777215)

Create Text Into Window nLayoutID
    "MAPA TEMÁTICO: " + UCase$(strTematico) + Chr$(13) + Chr$(13) +
     "MUNICIPIO: " + gblNOMBRE_MUNICIPIO + Chr$(13) +
    "NÚCLEO: " + gblNOMBRE_NUCLEO
    (colX1, zonaY1) (colX2, yActual)
    Font ("Arial",1,9,1)
    Justify Center

'Set Map Window nMapIDInLayout Zoom Entire Layer Selection
If WindowInfo(nMapIDInLayout, WIN_INFO_TYPE) <> WIN_MAPPER Then
    Note "La ventana activa no es un mapa"
    Exit Sub
End If

'## Finding the top left corner of the map frame and inserting the legends from this location
fFrameX		= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_POS_X)
fFrameY		= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_POS_Y)
fFrameWidth	= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_WIDTH)
fFrameHeight	= LayoutItemInfo(nLayoutID, nMapFrameID, LAYOUT_ITEM_INFO_HEIGHT)

fFramePositionY	= fFrameY

'## INserting a legend for each layer in the map
nNumLayers	= MapperInfo(nMapIDInLayout, MAPPER_INFO_LAYERS)
For nLayer = 1 to nNumLayers
	If LayerInfo(nMapIDInLayout, nLayer, LAYER_INFO_TYPE) In (LAYER_INFO_TYPE_NORMAL, LAYER_INFO_TYPE_THEMATIC) Then
		sLayerAlias	= LayerInfo(nMapIDInLayout, nLayer, LAYER_INFO_ALIAS)
		Print nLayer & ". Layer Alias:  " & sLayerAlias
		'Create Designer Legend
		'	From Window 3018
		'	Portrait
		'	Default Frame Style "Stores" Font ("Arial",0,8,0)
		'	Frame
		'		From Layer 1 Using column object label default

		If nLegendWID = 0 Then
			Create Designer Legend
				From Window nMapIDInLayout
				Default Frame Style "#" Font ("Arial",0,8,0)
				Custom
				Frame From Layer nLayer
					Position (fFrameX, fFramePositionY) Units "in"
					Using Column Object Label default
			nLegendWID =  LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_LEGEND_DESIGNER_WINDOW)
		Else
			Add Designer Frame
				Window nLegendWID
				Custom
				Frame From Layer nLayer
					Position (fFrameX, fFramePositionY) Units "in"
					Using Column Object Label default
		End If

		fFramePositionY	= fFramePositionY + LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_HEIGHT)
		fLegendWidth		= LayoutItemInfo(nLayoutID, LayoutInfo(nLayoutID, LAYOUT_INFO_NUM_ITEMS), LAYOUT_ITEM_INFO_WIDTH)
		fLegendWidthMax	= Maximum(fLegendWidthMax, fLegendWidth)
	End If
Next  'nLayer

'## Create frame to sit behind legend and create white space
Create Rect (fFrameX, fFrameY) (fFrameX + fLegendWidthMax, fFramePositionY)
	Pen (1,2,0)
	Brush (2,16777215,16777215)
	Priority 1

DONE:
  Exit Sub

errorTematicoViaria:
  Note "ERROR:" + Chr$(13) + Error$()
  Exit Sub

End Sub


    ------------------------------
    Peter Horsbøll Møller
    Principal Presales Consultant | Distinguished Engineer
    Precisely | Trust in Data
    ------------------------------

    Attachment(s)

    zip
    MaycaLayoutWithLegend.zip   2 KB 1 version


  • 2.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Posted 19 days ago

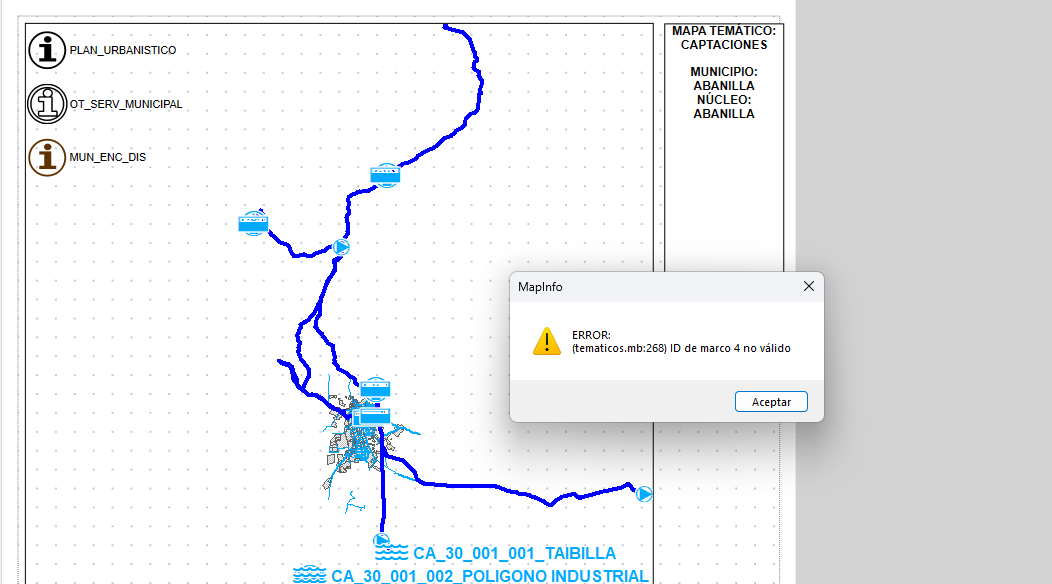

    I get the following error: Invalid frame ID 4



    ------------------------------
    Mayca González Pérez
    COMUNIDAD. AUT. REG MURCIA
    ------------------------------

    Original Message


  • 3.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Employee
    Posted 19 days ago

    Your MapBasic code must be slightly different from mine. I don't have a line 268, so I can't tell where it is failing.

    Can you upload your tematicos.mb as a zip file? I will have a look.

    It does seem to generate at least some legends for you, right?

    Does it fail after it has finished generating all the legends? Or does it fail during generating them?



    ------------------------------
    Peter Horsbøll Møller
    Principal Presales Consultant | Distinguished Engineer
    Precisely | Trust in Data
    ------------------------------

    Original Message


  • 4.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Posted 19 days ago



    ------------------------------
    Mayca González Pérez
    COMUNIDAD. AUT. REG MURCIA
    ------------------------------

    Original Message


  • 5.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Employee
    Posted 19 days ago

    I'm sorry, but that doesn't give me enough context to help you out.

    The source code does look fine from what I can tell.

    Is the fourth layer a normal layer type? IS there anything with that layer that is different from the first few layers?



    ------------------------------
    Peter Horsbøll Møller
    Principal Presales Consultant | Distinguished Engineer
    Precisely | Trust in Data
    ------------------------------

    Original Message


  • 6.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Posted 12 days ago

    It's working now. Thanks. One more question: could I add UTM coordinates to the map border?



    ------------------------------
    Mayca González Pérez
    COMUNIDAD. AUT. REG MURCIA
    ------------------------------

    Original Message


  • 7.  RE: MapBasic Monday: Add a Legend to a Layout Through MapBasic

    Employee
    Posted 11 days ago

    Sure, the tool WindowHelper has such a function built-in. read this article: MapInfo Monday: SmartTexts with Map Coordinates in the Layout Window.

    You can find the source code for WindowHelper on GitHub in case you want to grab the code and implement it in your own tool, look for the function called MAPHGetCoordinate.



    ------------------------------
    Peter Horsbøll Møller
    Principal Presales Consultant | Distinguished Engineer
    Precisely | Trust in Data
    ------------------------------

    Original Message
