  • 1.  Layout Window

    Posted 04-08-2020 04:02
    Hello all,

    I hope you are all safe and snuggly at home in your home office.

    for the love of.... and after 15 years of using MIpro I still do not understand how to handle the layout window.

    When I add a Map Frame in the Layout it will give me my map based upon the zoom level within the Map Window.
    I have to change the zoom in the Mapwindfow that so that my entire country fits.

    But How can I tell the layout window that what I see now in a smaller frame should fill out the entire page. When I pull on the frame handles the frame gets bigger but not the content.

    I seem to remember something about activate...

    Honestly this is not straight forward for a simple bloke like me! :)

    Cheers

    Georges

    ------------------------------
    Georges Majerus
    Project Manager Telecom
    LuxConnect
    Bettembourg
    ------------------------------


  • 2.  RE: Layout Window

    Employee
    Posted 04-09-2020 02:12
    Hi Georges,

    Please try the below steps and see if this works for you:

    Go to the Layout ribbon > New Layout
    Draw a New frame
    From the Layout > Insert section > Click on New Map

    You will get the 'New Map' window with all the available  Map layers. Choose the layer you want in your Layout. Click OK.


    Double click inside the Frame and from the context menu, you can change the view.

    Regards,
    Shweta




    ------------------------------
    Shweta Shukla
    Pitney Bowes Software India
    Noida
    ------------------------------

    Original Message


  • 3.  RE: Layout Window

    Posted 04-09-2020 08:48
    Edited by John Ievers 04-09-2020 08:48
    Hi Georges​
    I find it useful to forget how you used to do printing in old MapInfo and learn the new way. It is quite different!
    Rather than try and compare, just go with the flow of the new versions. Eventually you will like it....
    Start with some of the videos on YouTube like https://www.youtube.com/watch?v=_L8-4JESEwc
    Hope that helps

    ------------------------------
    John Ievers
    CDR Group
    Hope Valley, United Kingdom
    ------------------------------

    Original Message


  • 4.  RE: Layout Window

    Posted 04-09-2020 10:08
    Hello Georges - if you're in v15, I would right-click on the Layout window map frame, click Activate in the pop-up menu, right-click again on the Layout map frame and then click Change View in the pop-up menu so you can change the scale to zoom in or out.  You can also pick "Preserve current zoom" or "Preserve current scale".  Once the layout window's activated, you can also drag it around using the Pan tool, move labels etc., as this is a clone of the map window - it loses the link to the map window once in the layout window.

    Is this what you meant?

    Best wishes and Happy (safe) Easter,
    Jane

    ------------------------------
    Jane Mason
    Biological Records Officer (GIS), Suffolk Biodiversity Information Service, UK
    ------------------------------

    Original Message


  • 5.  RE: Layout Window

    Employee
    Posted 04-14-2020 05:39

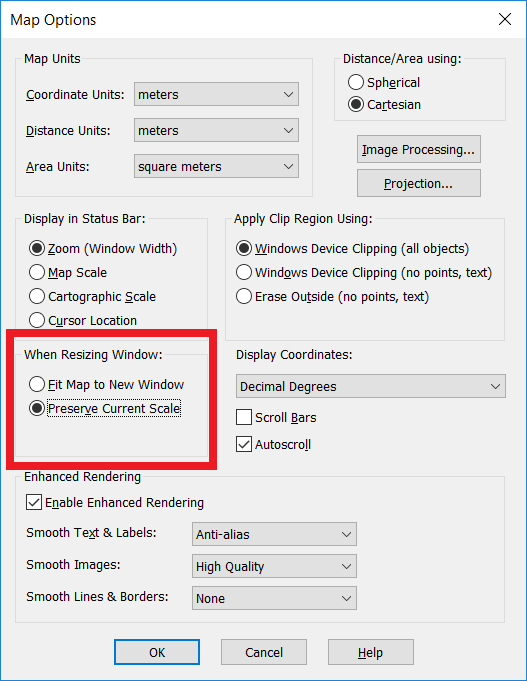

    There's a Map Option that controls this behavior, Georges.

    Under When Resizing Window, select Preserve Current Scale.


    ------------------------------
    Peter Horsbøll Møller
    Distinguished Engineer
    Pitney Bowes Software & Data
    ------------------------------

    Original Message


  • 6.  RE: Layout Window

    Posted 04-14-2020 08:26
    Thanks to all of you. I think I got it now.
    Stay healthy!

    ------------------------------
    Georges Majerus
    Project Manager Telecom
    LuxConnect
    Bettembourg
    ------------------------------
