    Over the coming weeks, I'll write a #series of articles about the #SQL improvements we have made in MapInfo Pro v2019. A big part of this will be the Select statement but we have also made a number of other improvements that I'll cover.

    In this article, I'll write about the new feature that allows you to display derived spatial objects in maps using the Object keyword.

    Displaying Derived Spatial Objects

    You could in earlier versions of MapInfo Pro calculated derived spatial objects and use these in your statement. But you couldn't display the derived spatial object in a map window. Here you would always see the object from the primary table of your query.

    In MapInfo Pro v2019, we have added the new Object keyword to use in Select statements when your projection list returns multiple objects, either implicitly or explicitly. You place the keyword after the object expression that you want to use as the spatial object in your query result:

    Select <some object returning expresssion> Object
    From <sometable>


    You can use the keyword after an obj column. If you only are selecting from one table, this is not necessary. If you are selecting from multiple tables, you can use the Object keyword to control from which table, you want to use the spatial object.

    You can also use the Object keyword after a spatial function that returns a spatial object. This lets you calculate new spatial objects and use these in the query result.

    You cannot use the Object keyword after a spatial aggregate. You can only use one spatial aggregate in a query and that is the only spatial element returned.

    Examples

    In this first example, we will use the Object keyword to highlight the points selected by the query. Often when you select points, it can be hard to see where they are located. You can use the Buffer function to convert the points to a polygon and so highlight the area.

    In this example, we select all the address points for a specific road. To all the columns in the table, we add a buffer expression that creates a 10-meter buffer around the points. We use the Object keyword for the buffer expression to use this object instead of the points from the input table.

    Select a.*, CartesianBuffer(a.Obj, 24, 10, "m") Object
    From Addresses As "a"
    Where a.StreetName = "Søndervang"
    Into Selection

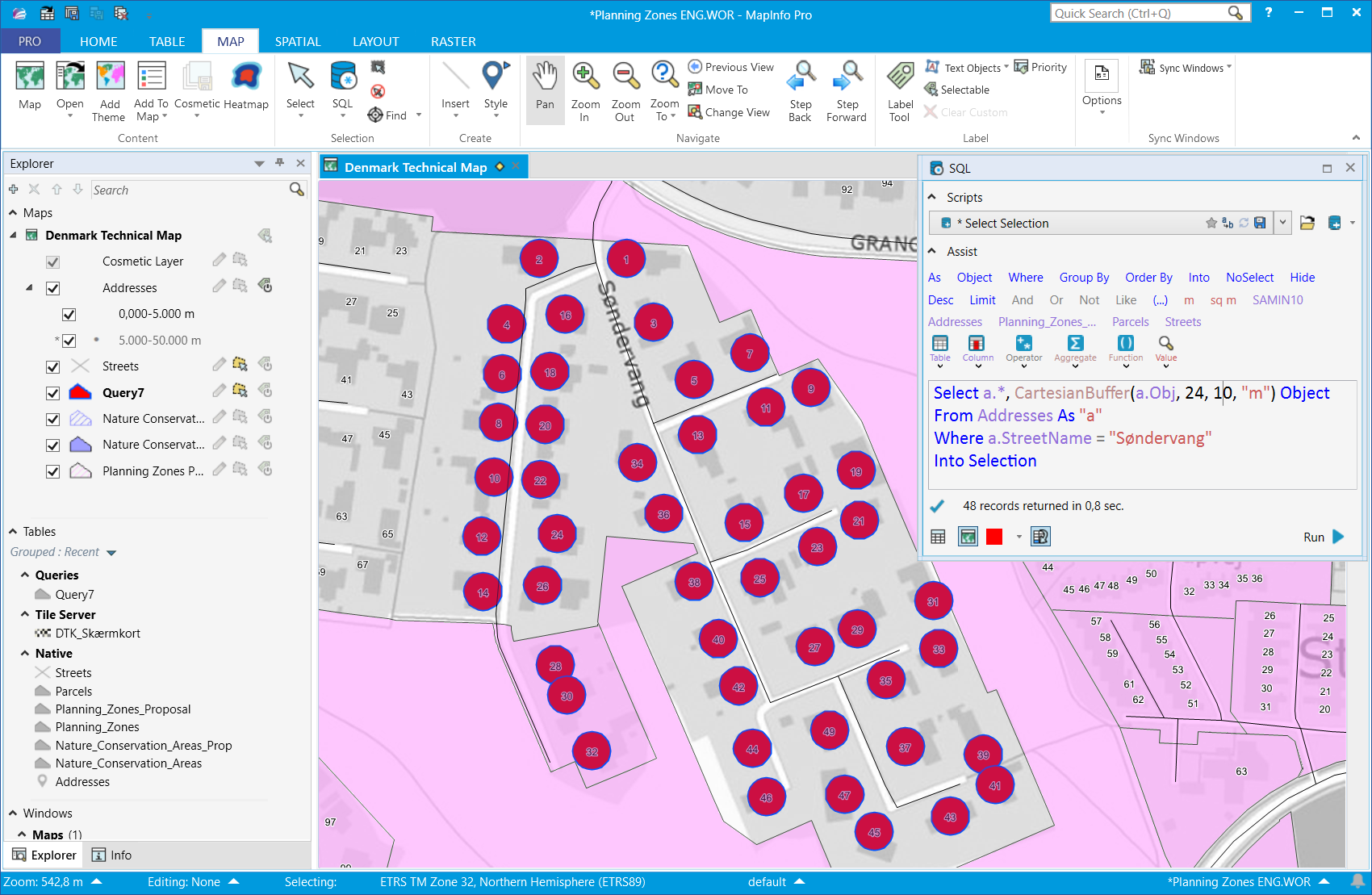

    In the map below, you can see how the buffer highlights the address points. For the query, we also specified that the query should get added to the map with a specific override color and we enabled the Zoom to Selection too.

    In this example the input objects where points, but you can also use this method for other object types like (poly)lines and polygons.


    In the second example, we will use the Object keyword to return the overlap between objects in two tables. In our case, it's the overlap between property parcels (Parcels) and a specific manually selected planning zones (Selection). In the map below, you can see the extent of the selected planning zone.

    The query selects all columns from the two tables and adds an Overlap expression that will return the area where the objects intersect.

    Select p.*, z.planid, z.plannavn, Overlap(p.obj, z.obj) Object
    From Parcels As "p", Selection As "z"
    Where p.Obj Intersects z.Obj
    Into Selection

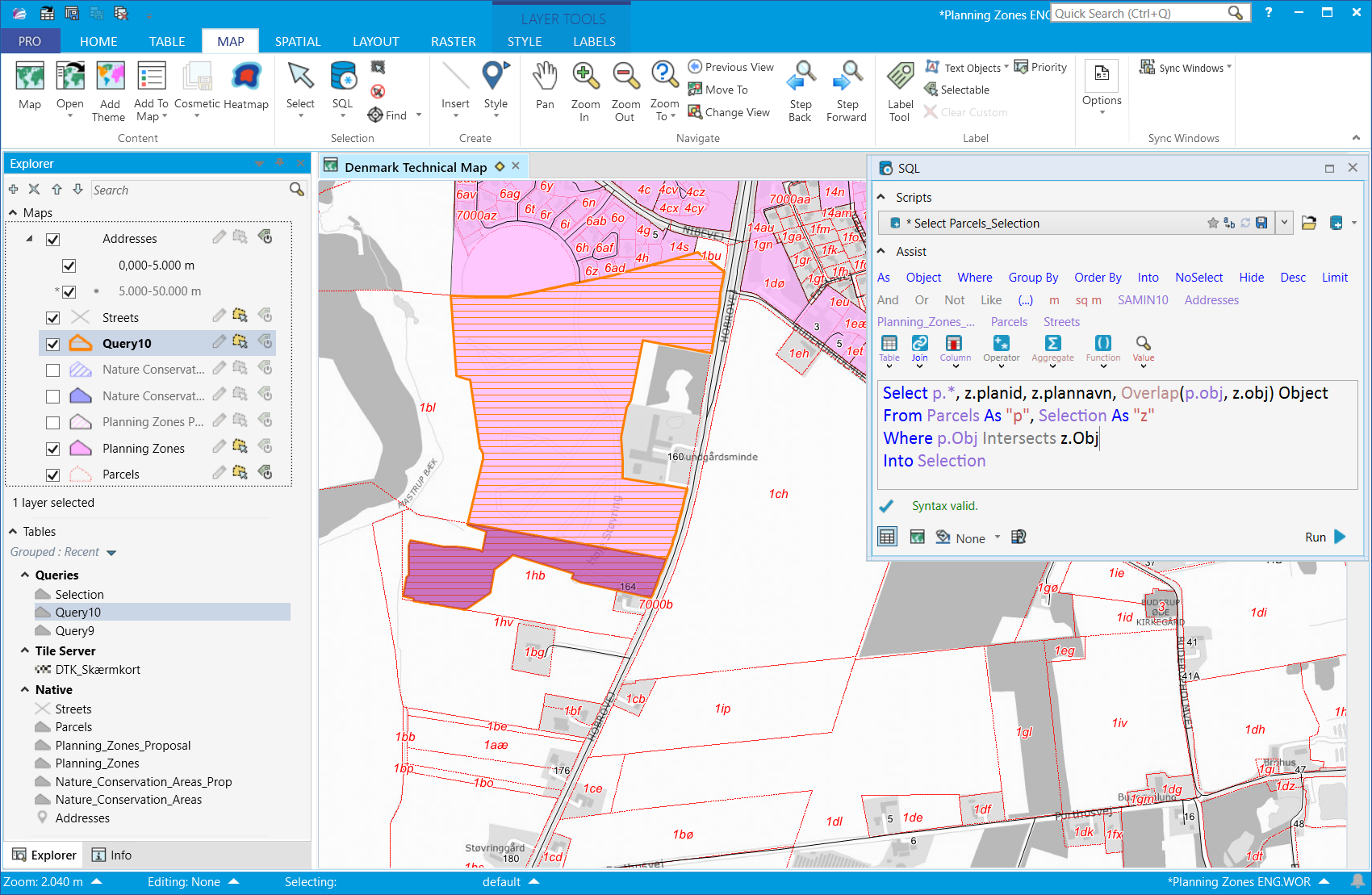

    In the map, I have highlighted the resulting polygons with a thick orange line and orange horizontal pattern. I have manually selected the overlap inside parcel 1hb so that you can see it's not connected to the rest.


    In this third and final example, we will use the Object keyword to highlight the spatial relation between objects that are near each other. We are also using some other improvements around joins that I will cover in another post.

    The query below lets you see the spatial relationship as a straight line between the two objects that are joined. The join condition is here defined as objects that are closer than 500 meters from each other.

    The query finds addresses near a selected object. In my example, I'm looking for addresses near a specific lake. I select the lake using the selector and then I run the query. In the SQL Window, I have specified that the result should be added to my map with a red override color.

    Select a.*, CartesianConnectObjects(l.Obj, a.Obj, 1) Object
    From Selection As "l", Addresses As "a"
    Where CartesianObjectDistance(l.obj, a.obj, "m") < 500
    Into Selection

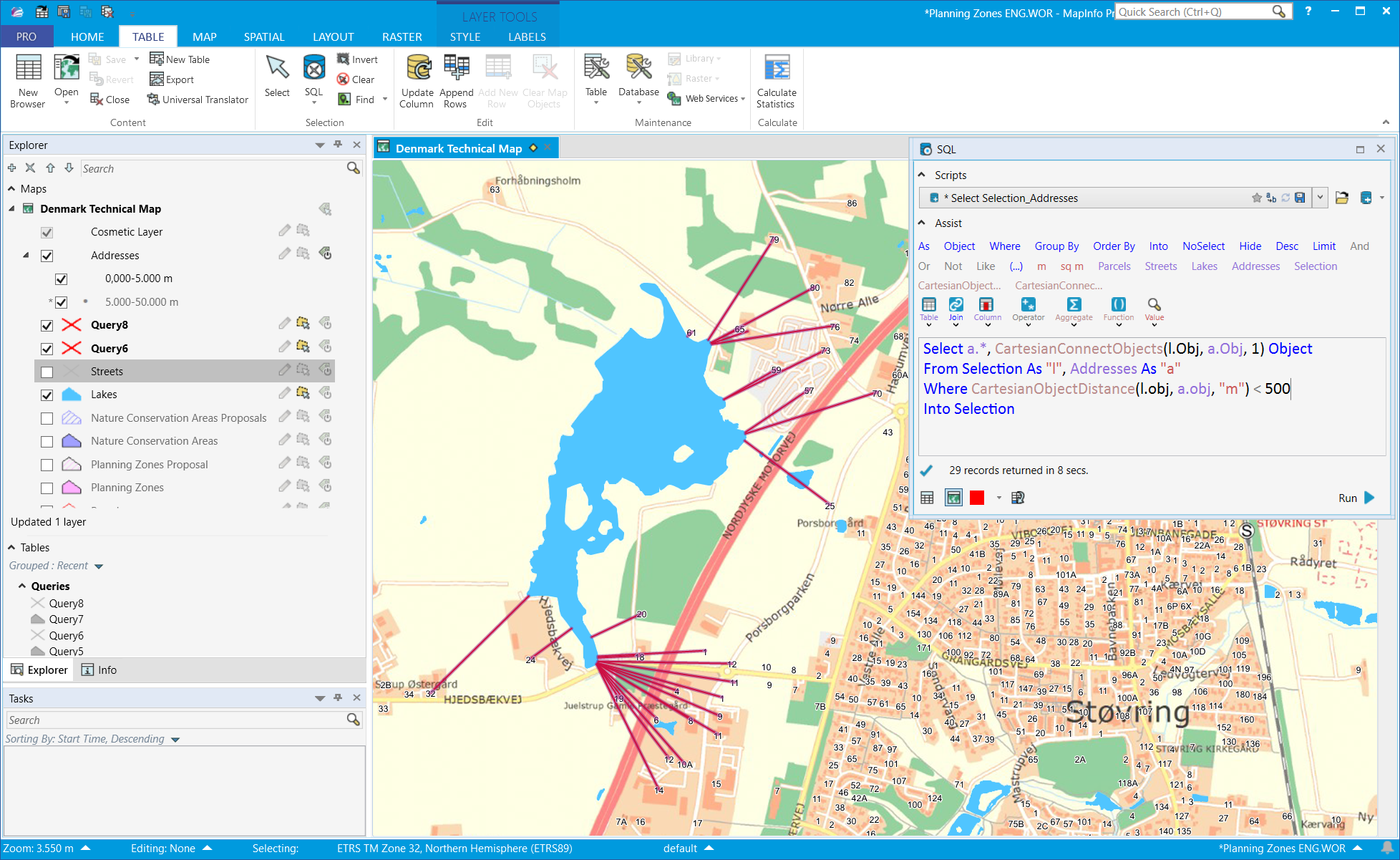

    The result can be seen in the map as lines between the addresses and the nearest place on the selected polygon.


    I hope you have found this useful. Let us know if you have specific queries, that would like to perform. Maybe we can help you create these.

    Stay tuned for the next post next week!



    ------------------------------
