Coordinate editor tool

  • 1.  Coordinate editor tool

    Posted 07-16-2019 03:46
    Is anyone aware of a tool that allows you to edit each individual point in a polygon?
    Thanks​​​​​​

    ------------------------------
    Aline Salas

    ------------------------------


  • 2.  RE: Coordinate editor tool

    Posted 07-16-2019 12:54
    Not sure what you mean here Aline.
    You can edit any point using MapInfo Pro​.
    Or do you mean the nodes that make up a polygon?
    Again, edit using the re-shape tool in MapInfo.

    ------------------------------
    John Ievers
    CDR Group
    Hope Valley, United Kingdom
    ------------------------------

    Original Message


  • 3.  RE: Coordinate editor tool

    Employee
    Posted 07-17-2019 04:40
    Hi Aline,

    Adding to what John suggested, to use the Spatial Editing tool Reshape ( Spatial ribbon > Edit section > Nodes drop-down), you can also explore the various other tools coming with the auto loaded MapCAD addin. There are various tools for modifying spatial objects that would complement the Reshape tool.

    You can also enable Snap using the S-key on your keyboard to snap an existing node or a new node to another node. This can be done in the same layer or a different layer that can be selected.

    Regards,
    Shweta

    ------------------------------
    Shweta Shukla
    Pitney Bowes Software India
    Noida
    ------------------------------

    Original Message


  • 4.  RE: Coordinate editor tool

    Posted 07-18-2019 06:28
    Edited by Aline Salas 07-18-2019 06:29
    Hi Shweta
    Is there a way I can type in the exact location of each of those nodes (i.e. not physically dragging them)?​

    ------------------------------
    Aline Salas
    Knowledge Community Shared Account
    ------------------------------

    Original Message


  • 5.  RE: Coordinate editor tool

    Employee
    Posted 07-19-2019 02:55
    Hi Aline,

    Now that you have your nodes edited in the polygon, you can edit the bounds and center for the polygon/polyline or the location for the nodes. Make the layer editable and double click on the node to edit the location for it.

    You can go to the Styles ribbon > Click on Show nodes to see all the nodes in the layer.

    Let me know if this is what you are wanting to do.





    Regards,
    Shweta

    ------------------------------
    Shweta Shukla
    Pitney Bowes Software India
    Noida
    ------------------------------

    Original Message


  • 6.  RE: Coordinate editor tool
    Best Answer

    Employee
    Posted 07-29-2019 08:53
    Hi Aline

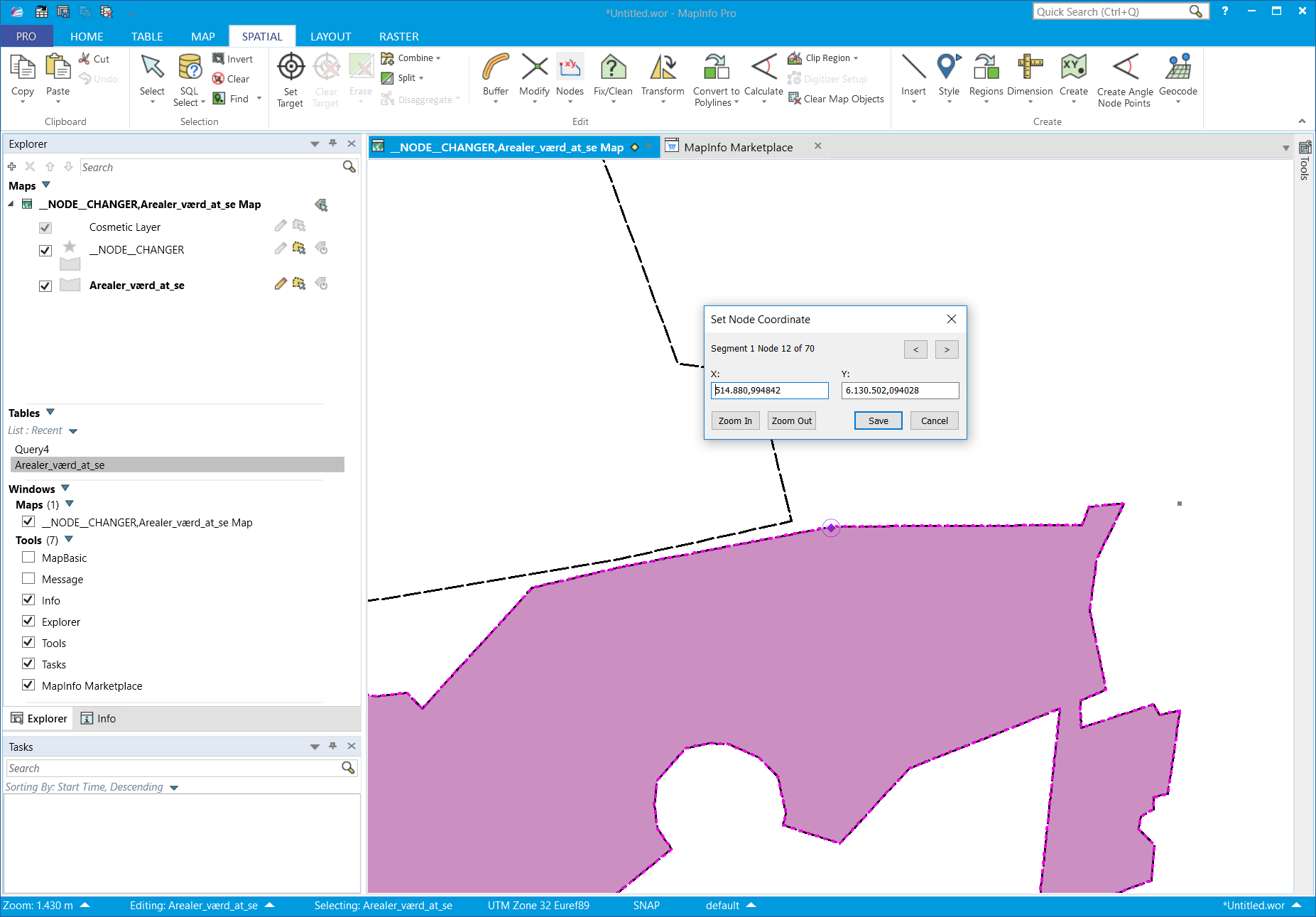

    In the the tool DrawTools 1.30 you can find a feature called Set Node Coordinate. It's located on the SPATIAL tab on the Nodes dropdown button in the Edit group.

    Select the tool and click near the node you want to edit. You might have to turn on snap to make sure you get the right one or near enough.

    The tool will now show the coordinates of the node nearest to the point where you clicked. You can use the dialog to move back and forth in the nodes of the polygon/polyline and in this way change multiple nodes.



    The tool hasn't yet been published to the Community Download page nor has it been updated in the MapInfo Marketplace Preview.
    You can however get it from the Github site: DrawTools 64 bit

    ------------------------------
    Peter Horsbøll Møller
    Pitney Bowes
    ------------------------------

    Original Message


  • 7.  RE: Coordinate editor tool

    Employee
    Posted 07-29-2019 10:05
    ​@Peter Møller, thanks for the clarification. I had thought so too but wasn't sure ​​about it. Just to let you know, we have the Draw Tools in the Marketplace for 17.0.3.

    Regards,
    Shweta

    ------------------------------
    Shweta Shukla
    Pitney Bowes Software India
    Noida
    ------------------------------

    Original Message


  • 8.  RE: Coordinate editor tool

    Posted 07-29-2019 22:50
    Thanks Peter, that's exactly what I am after.​

    ------------------------------
    Aline Salas
    Knowledge Community Shared Account
    Shelton CT
    ------------------------------

    Original Message


  • 9.  RE: Coordinate editor tool

    Employee
    Posted 07-30-2019 09:08
    The tool has been updated on the Community Download side and we are working on updating it in the MapInfo Marketplace too.

    Let me know if you have suggestions on how to improve the tool even further, Aline.

    ------------------------------
    Peter Horsbøll Møller
    Pitney Bowes
    ------------------------------

    Original Message


  • 10.  RE: Coordinate editor tool

    Employee
    Posted 08-16-2019 02:45
    The new version of the tool is now also live on the MapInfo Marketplace: DrawTool

    ------------------------------
    Peter Horsbøll Møller
    Pitney Bowes
    ------------------------------

    Original Message
