  • 1.  Add Workspaces into the same map

    Posted 03-11-2020 22:25
    Edited by George Corea 03-11-2020 22:35

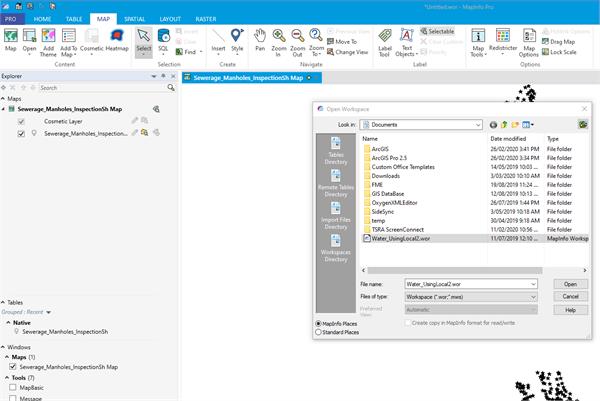

    In Mapinfo 19 is it possible to add existing workspaces into the same map view?

    Currently it only allows Automatic as the preferred view and this is always a new map for each workspace.



    Alternatively once it's imported in as different maps can we drag multiple layers into one map and have it bring in the associated theme layers. Currently when you drag a layer in, it only brings the table and not the associated theme(s) unless one of them is the default theme.

    ------------------------------
    George Corea
    Mangoesmapping
    ------------------------------


  • 2.  RE: Add Workspaces into the same map

    Posted 03-12-2020 00:44
    Hi George

    When you Add a Workspace, it won't merge any original Map windows together.

    However, there's a tool in the Market Place called Multi Mapper Helper, which will support you to copy layers from one map window to another map window, and also add themes from a layer in one map window to the same layer in another map window.

    Hope this helps.

    Regards

    ------------------------------
    Kalu Ribush
    Senior Mapping Specialist
    Department of Economic Development, Jobs, Transport and Resources (DEDJTR)
    Melbourne VIC
    ------------------------------

    Original Message


  • 3.  RE: Add Workspaces into the same map
    Best Answer

    Employee
    Posted 03-12-2020 03:24
    Hi George

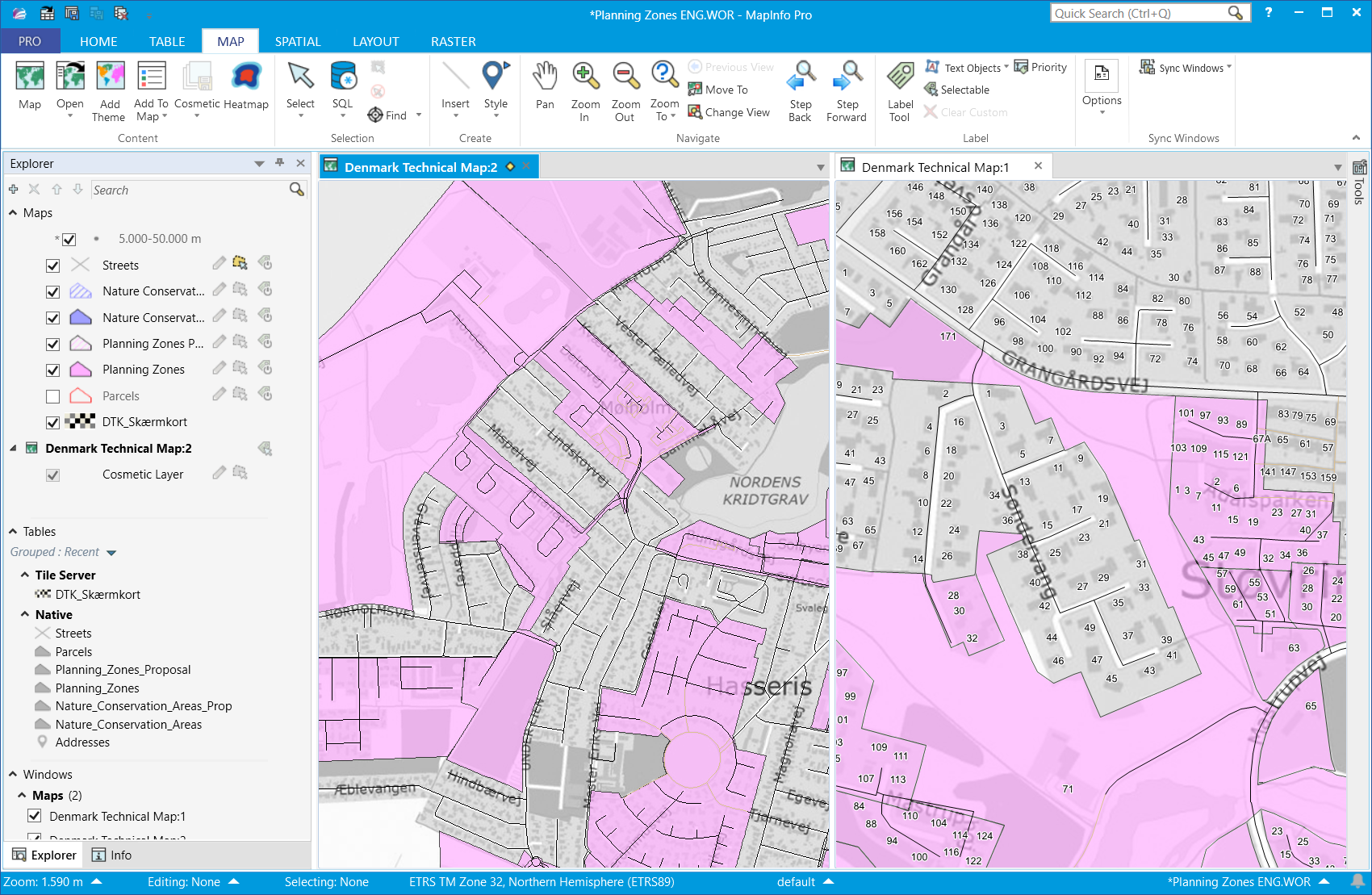

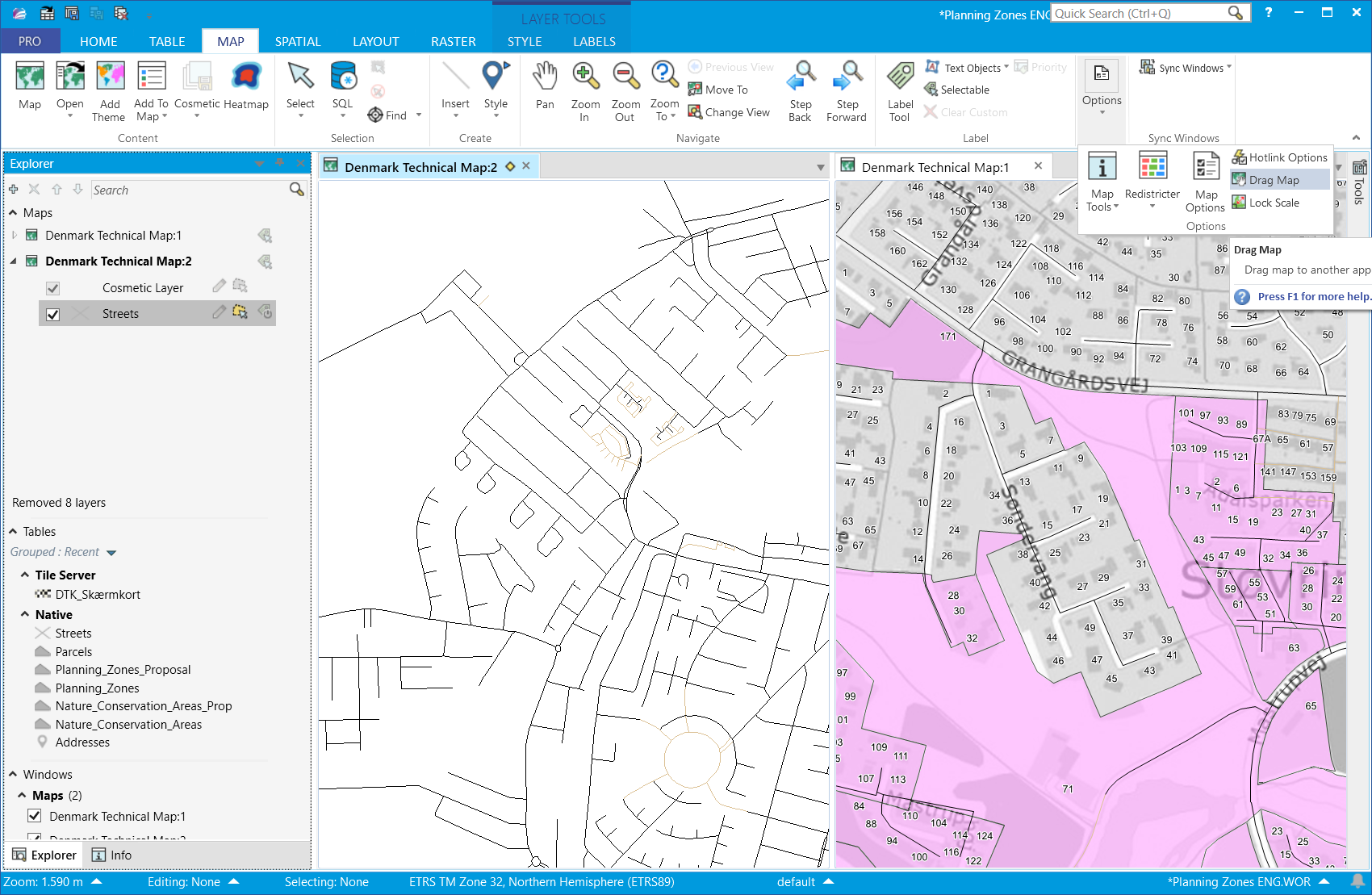

    You can use the Drag Maq tool from the Options dropdown on the MAP tab to copy the layers and themes from one map into another map.

    1. Select the tool
    2. Split your maps into two tab groups3.  so that you can see them both. This is done by right-clicking on the tab of the map.
    3. With the Drag Map tool click and hold down the left mouse button inside the map you want to copy
    4. and then drag it into the other where you release the mouse button

    The layers will typically get added on top of the existing layers in the map.

    ------------------------------
    Peter Horsbøll Møller
    Distinguished Engineer
    Pitney Bowes Software & Data
    ------------------------------

    Original Message


  • 4.  RE: Add Workspaces into the same map

    Posted 03-12-2020 12:33
    Hi George
    The Drag Map window explained by Peter is probably the best option, as it pulls across any zoom laying and style overrides that you may have applied in your workspace. However, you can also select one or more layers from the Tables List and simply drag those into your Map Window as well.

    ------------------------------
    John Ievers
    CDR Group
    Hope Valley, United Kingdom
    ------------------------------

    Original Message


  • 5.  RE: Add Workspaces into the same map

    Employee
    Posted 03-18-2020 03:56

    Let me add a bit more detail to John's suggestion.

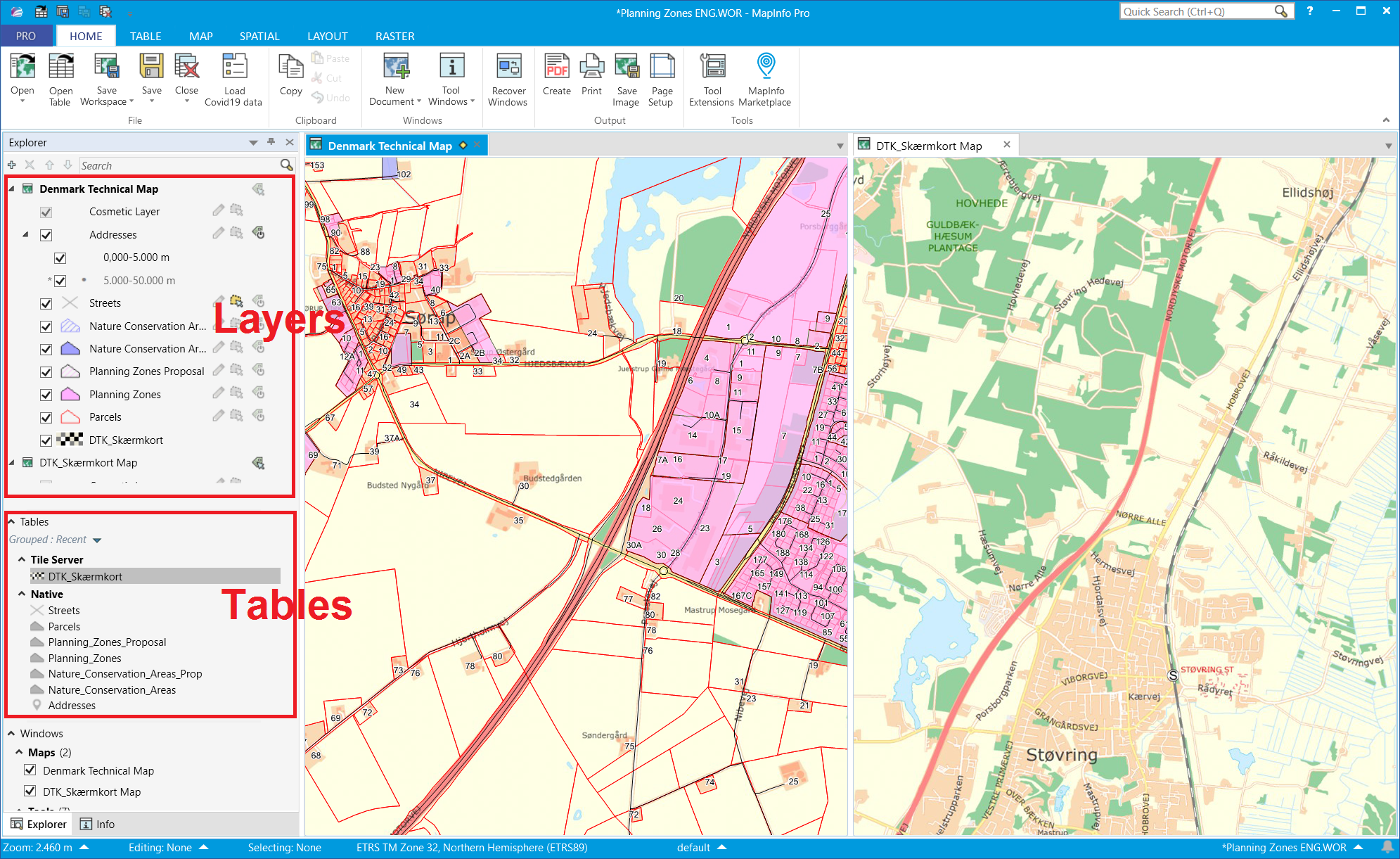

    Remember that the Explorer Window, which I think John was referring to, holds two lists: Maps/Layers and Tables.

    You can drag a layer from one map to another map inside the layer list. You drag it up or down and dump it into another map in the layer list. In this way, you can copy a layer from one map to another map including all the layer settings. You can't drag and dump a layer into a map window on the right.

    If you drag a table from the table list and drop on top of a map in the layer list, the table will get opened in its own new map. You can also drag a table and drop it into a map window on the right. This will add the table as a new layer to that map. It will however not include any layer settings as a table by default doesn't have any layer settings.

    A final note: If a table has a default theme, this will be applied to the layer if you add the table to an existing map no matter the way you add it to the map.



    ------------------------------
    Peter Horsbøll Møller
    Distinguished Engineer
    Pitney Bowes Software & Data
    ------------------------------

    Original Message
