Automate

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

hi Allen, it works for me ... (Studio 12.1):

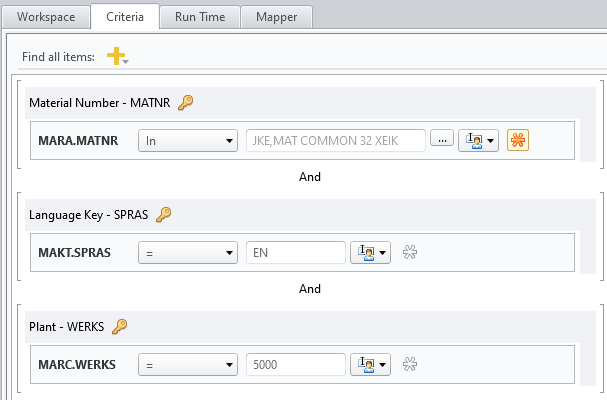

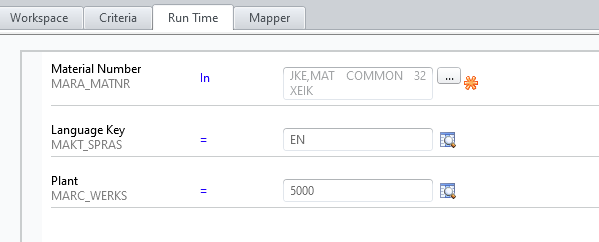

I made a little query MARA-MARC-MAKT, as you did (as far as I can see on you screenshots).

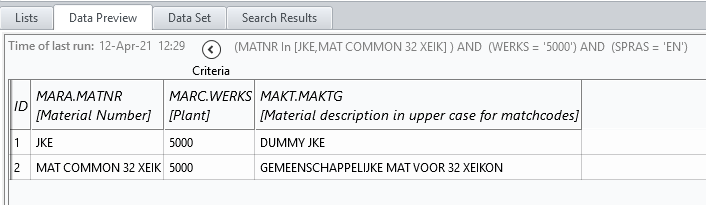

I'm getting correct results, with pre-padding with zeroes as well as without padding with zeroes.
Sure you don't have any spaces (leading or trailing)? You may want to set the TRIM flags in Studio options ?

best, jan

------------------------------
jan ketele | Sr engineer release mgt
Xeikon Manufacturing NV | +32 34 43 1 875
------------------------------

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Yes, the TRIM flags are set. It looks like pre-padding doesn't work with alphanumeric values, as per Sigrid below. But thanks for looking into this. Appreciate it.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Original Message:
Sent: 04-12-2021 06:30
From: jan ketele
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

hi Allen, it works for me ... (Studio 12.1):
I made a little query MARA-MARC-MAKT, as you did (as far as I can see on you screenshots).
I'm getting correct results, with pre-padding with zeroes as well as without padding with zeroes.
Sure you don't have any spaces (leading or trailing)? You may want to set the TRIM flags in Studio options ?

best, jan

------------------------------
jan ketele | Sr engineer release mgt
Xeikon Manufacturing NV | +32 34 43 1 875

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Hi Allan

I believe zero padding only works with fully numeric material numbers.  Jan was great to jump in and test, but his start with alphabetic characters and are not zero padded.  Since yours are a mix and zero padded, perhaps you can use a formula to create a column of derived zero padded material numbers.

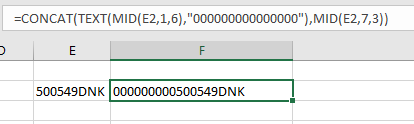

If the format is always the same, 15 digits and 3 alpha, you could use something like this

Otherwise, you'd have to get a bit fancier and write a macro.  I found several suggestions via a google search, so maybe you can, too.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Hi Sigrid,
Thanks for the confirmation. The workaround you showed is indeed what I have in mind in case the user needs to input several materials at once in the criteria. Just wanted to confirm the if the pre-padding functionality caters to fully numeric values only. Most of our materials have 1st 6-digit numeric and last 3 alphanumeric char.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Original Message:
Sent: 04-13-2021 12:18
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Allan

I believe zero padding only works with fully numeric material numbers.  Jan was great to jump in and test, but his start with alphabetic characters and are not zero padded.  Since yours are a mix and zero padded, perhaps you can use a formula to create a column of derived zero padded material numbers.

If the format is always the same, 15 digits and 3 alpha, you could use something like this

Otherwise, you'd have to get a bit fancier and write a macro.  I found several suggestions via a google search, so maybe you can, too.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Please note, Allan, that you can apply formulas in the script to derive that formatted material number.  It will run as the script runs, so no worries if a runner accidentally removes the formulas when entering data.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message:
Sent: 04-14-2021 05:14
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Sigrid,
Thanks for the confirmation. The workaround you showed is indeed what I have in mind in case the user needs to input several materials at once in the criteria. Just wanted to confirm the if the pre-padding functionality caters to fully numeric values only. Most of our materials have 1st 6-digit numeric and last 3 alphanumeric char.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959

Original Message:
Sent: 04-13-2021 12:18
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Allan

I believe zero padding only works with fully numeric material numbers.  Jan was great to jump in and test, but his start with alphabetic characters and are not zero padded.  Since yours are a mix and zero padded, perhaps you can use a formula to create a column of derived zero padded material numbers.

If the format is always the same, 15 digits and 3 alpha, you could use something like this

Otherwise, you'd have to get a bit fancier and write a macro.  I found several suggestions via a google search, so maybe you can, too.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Thanks Sigrid.

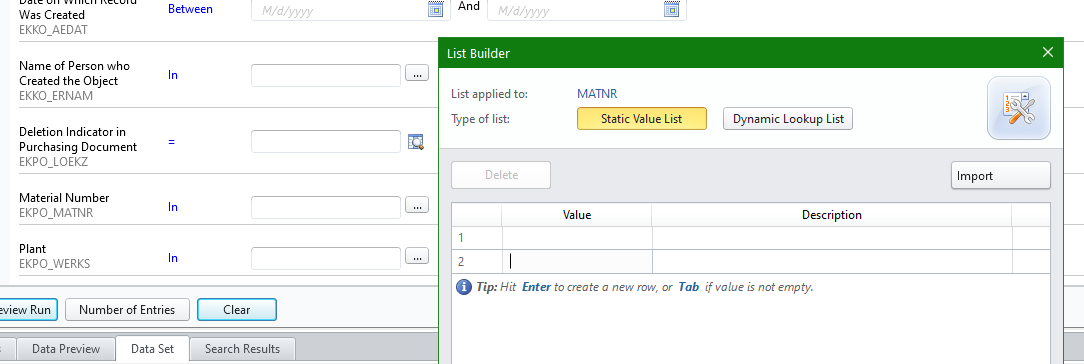

For Purchase Order Query, my users will most likely enter the material nos. manually here. Is there a way to set a formula on this level so that they can enter our normal 9-digit alphanumeric mat'l and the system will see it as "000000000500549DNK" and generate an output? I don't think the "Add Transform" option will address that. It's not a major issue but will be good to have for convenience.



------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Original Message:
Sent: 04-14-2021 08:57
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Please note, Allan, that you can apply formulas in the script to derive that formatted material number.  It will run as the script runs, so no worries if a runner accidentally removes the formulas when entering data.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-14-2021 05:14
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Sigrid,
Thanks for the confirmation. The workaround you showed is indeed what I have in mind in case the user needs to input several materials at once in the criteria. Just wanted to confirm the if the pre-padding functionality caters to fully numeric values only. Most of our materials have 1st 6-digit numeric and last 3 alphanumeric char.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959

Original Message:
Sent: 04-13-2021 12:18
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Allan

I believe zero padding only works with fully numeric material numbers.  Jan was great to jump in and test, but his start with alphabetic characters and are not zero padded.  Since yours are a mix and zero padded, perhaps you can use a formula to create a column of derived zero padded material numbers.

If the format is always the same, 15 digits and 3 alpha, you could use something like this

Otherwise, you'd have to get a bit fancier and write a macro.  I found several suggestions via a google search, so maybe you can, too.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------

Hi Allan,

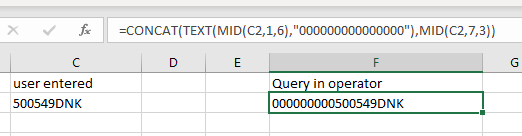

Because you're using this material number in a Query with an IN operator, I would allow the user to enter it wherever you currently have it, and then use a formula in another column - either displayed or hidden.  Then point the IN operator to the derived material number column of data.

Hope that helps,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message:
Sent: 04-16-2021 05:54
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Thanks Sigrid.

For Purchase Order Query, my users will most likely enter the material nos. manually here. Is there a way to set a formula on this level so that they can enter our normal 9-digit alphanumeric mat'l and the system will see it as "000000000500549DNK" and generate an output? I don't think the "Add Transform" option will address that. It's not a major issue but will be good to have for convenience.



------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959

Original Message:
Sent: 04-14-2021 08:57
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Please note, Allan, that you can apply formulas in the script to derive that formatted material number.  It will run as the script runs, so no worries if a runner accidentally removes the formulas when entering data.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-14-2021 05:14
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Sigrid,
Thanks for the confirmation. The workaround you showed is indeed what I have in mind in case the user needs to input several materials at once in the criteria. Just wanted to confirm the if the pre-padding functionality caters to fully numeric values only. Most of our materials have 1st 6-digit numeric and last 3 alphanumeric char.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959

Original Message:
Sent: 04-13-2021 12:18
From: s kok
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi Allan

I believe zero padding only works with fully numeric material numbers.  Jan was great to jump in and test, but his start with alphabetic characters and are not zero padded.  Since yours are a mix and zero padded, perhaps you can use a formula to create a column of derived zero padded material numbers.

If the format is always the same, 15 digits and 3 alpha, you could use something like this

Otherwise, you'd have to get a bit fancier and write a macro.  I found several suggestions via a google search, so maybe you can, too.

Best Regards,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 04-12-2021 03:12
From: Allan Joseph Tiongson
Subject: Query: Pre-pad with zeroes for alphanumeric MATNR

Hi, may you advise if the Query "Pre-pad with zeroes option" doesn't work with alphanumeric values? Example above - our materials are composed of 9 alphanumeric char. The MATNR field is an 18-char. string so I expect that when I choose "Pre-pad with zeroes" option, the user need not key in leading zeroes. However, this is not the case. Even with the "Pre-pad with zeroes" option selected, Query is unable to recognize our 9-char. alphanumeric materials on their own - the 9 leading zeroes still need to be manually pre-pended by user.

------------------------------
Allan Joseph Tiongson | Planner, Master Data and Processes
Chevron Corporation | 97109959
------------------------------
