Hi Shuttlers,

Working with BP in ECC. Under Address tab Communication Standard Method (DDR1_DATA-DEFLT_COMM) when recording I am able to select or type in INT E-mail as the selection. The field is only a string of 3. In mapping it shows as INT.

My issue is when I go to run the script it dose not populate in both standard and Batch Mode. What am I not doing incorrectly?

Thanks for your help in advance.

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Original Message:
Sent: 05-06-2020 13:11
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

Hi Shuttlers,

Working with BP in ECC. Under Address tab Communication Standard Method (DDR1_DATA-DEFLT_COMM) when recording I am able to select or type in INT E-mail as the selection. The field is only a string of 3. In mapping it shows as INT.

My issue is when I go to run the script it dose not populate in both standard and Batch Mode. What am I not doing incorrectly?

Thanks for your help in advance.

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Hi Ben

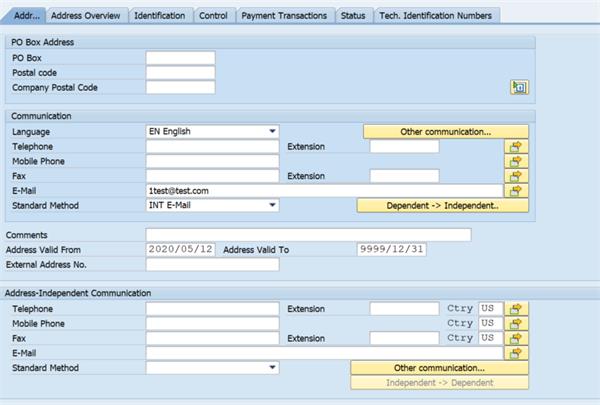

Was able to do a simple recording and can post to that field, example attached.


------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message:
Sent: 05-06-2020 17:41
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

i am able to add a screen grab.
I have Language as a fixed data input at EN and it populates as shown.
I have Standard Method as a fixed input at INT (INT E-mail) and it dose not populate as shown.
Is it user settings or SAP settings are two things I am thinking of but could be something else.
We have tried some to change user settings but as shown in the screen grab it works for EN but not for INT.

Thanks

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580

Original Message:
Sent: 05-06-2020 13:11
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

Hi Shuttlers,

Working with BP in ECC. Under Address tab Communication Standard Method (DDR1_DATA-DEFLT_COMM) when recording I am able to select or type in INT E-mail as the selection. The field is only a string of 3. In mapping it shows as INT.

My issue is when I go to run the script it dose not populate in both standard and Batch Mode. What am I not doing incorrectly?

Thanks for your help in advance.

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Original Message------

Hi Ben

Was able to do a simple recording and can post to that field, example attached.

I'm using Studio 12.1, with Winshuttle Function Module 12.1, against ECC 6.0.   Are you on a different version?

Hope this helps a little,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message------

Hi Ben

Was able to do a simple recording and can post to that field, example attached.

I'm using Studio 12.1, with Winshuttle Function Module 12.1, against ECC 6.0.   Are you on a different version?

Hope this helps a little,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Sigrid,

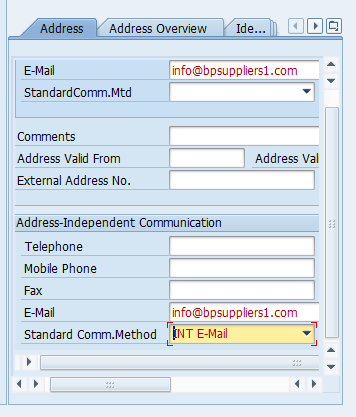

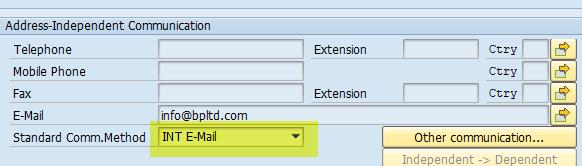

In your image the result comes in at Address-Independent Communication section. The request is for it to come in at the Communication section. When I do the recording it will save in the Communication section field but when I test the load it will input at the Communication field but show in the Address-Independent Communication section as your image shows. When I look at both fields they have the same table and field names.

Could you review your BP that you created making the script and see if this is the same for you?

I do not know much about BP. Thank you for your help.

Next though do I need to do a GUI Scripting to position to that field and save.

Thanks
Ben Kielas

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Original Message:
Sent: 05-08-2020 09:41
From: sigrid kok
Subject: BP in ECC Standard Method field

Hi Ben

Was able to do a simple recording and can post to that field, example attached.

I'm using Studio 12.1, with Winshuttle Function Module 12.1, against ECC 6.0.   Are you on a different version?

Hope this helps a little,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 05-06-2020 17:41
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

i am able to add a screen grab.
I have Language as a fixed data input at EN and it populates as shown.
I have Standard Method as a fixed input at INT (INT E-mail) and it dose not populate as shown.
Is it user settings or SAP settings are two things I am thinking of but could be something else.
We have tried some to change user settings but as shown in the screen grab it works for EN but not for INT.

Thanks

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580

Original Message:
Sent: 05-06-2020 13:11
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

Hi Shuttlers,

Working with BP in ECC. Under Address tab Communication Standard Method (DDR1_DATA-DEFLT_COMM) when recording I am able to select or type in INT E-mail as the selection. The field is only a string of 3. In mapping it shows as INT.

My issue is when I go to run the script it dose not populate in both standard and Batch Mode. What am I not doing incorrectly?

Thanks for your help in advance.

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Hi Ben

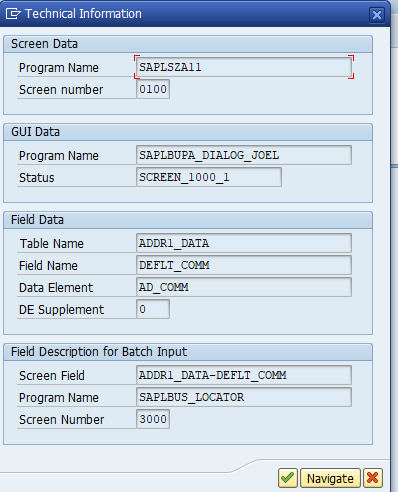

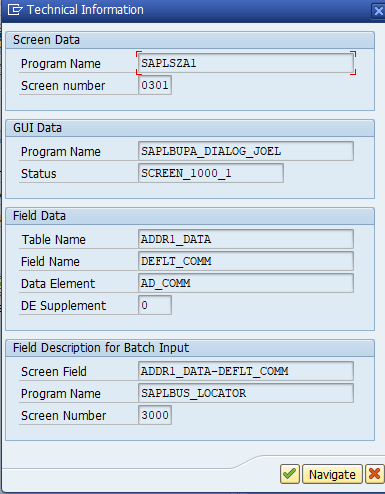

Sorry I didn't notice which section I was populating.  I now see that the communication method field is actually the same SAP field name under the covers - although there is a subtle difference in a sub screen name that we're not capturing
communications grouping
we focus on the field data, which is identical, and the program name and screen number on the bottom (batch input), which is also identical.

This is a default recording mode script - non-batch.  I captured both sets of email and communication methods - mapping them to the same fields in excel,  here's what I see in step by step mode
So overall batch and non-batch see communication method as the same field and is only filling in the last one.  GUI scripting works.  Also if you'd consider a BAPI instead of GUI scripting, then there is likely one for BP in ECC that would work.

Hope this helps,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------

Original Message:
Sent: 05-12-2020 14:22
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

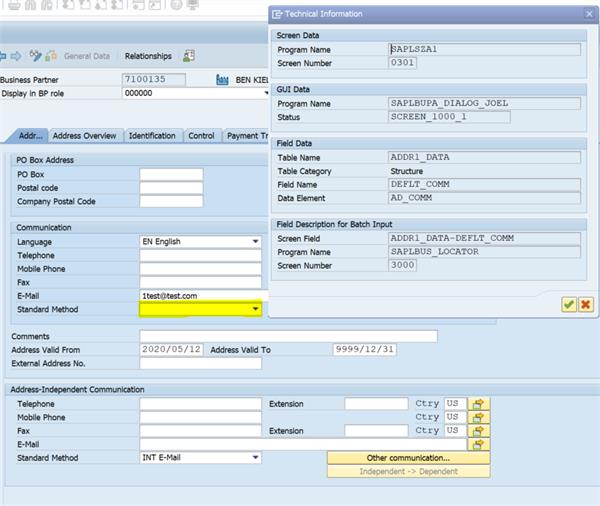

Creating WS script

Field name in COMM.

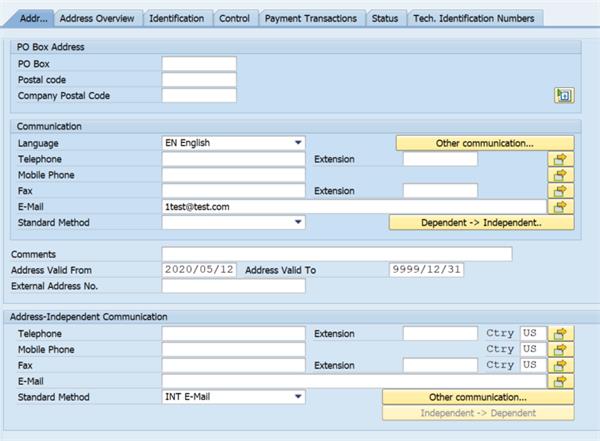

Using WS load

Field name in Address COMM

Sigrid,
In your image the result comes in at Address-Independent Communication section. The request is for it to come in at the Communication section. When I do the recording it will save in the Communication section field but when I test the load it will input at the Communication field but show in the Address-Independent Communication section as your image shows. When I look at both fields they have the same table and field names.

Could you review your BP that you created making the script and see if this is the same for you?

I do not know much about BP. Thank you for your help.

Next though do I need to do a GUI Scripting to position to that field and save.

Thanks
Ben Kielas

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580

Original Message:
Sent: 05-08-2020 09:41
From: sigrid kok
Subject: BP in ECC Standard Method field

Hi Ben

Was able to do a simple recording and can post to that field, example attached.

I'm using Studio 12.1, with Winshuttle Function Module 12.1, against ECC 6.0.   Are you on a different version?

Hope this helps a little,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA

Original Message:
Sent: 05-06-2020 17:41
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

i am able to add a screen grab.
I have Language as a fixed data input at EN and it populates as shown.
I have Standard Method as a fixed input at INT (INT E-mail) and it dose not populate as shown.
Is it user settings or SAP settings are two things I am thinking of but could be something else.
We have tried some to change user settings but as shown in the screen grab it works for EN but not for INT.

Thanks

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580

Original Message:
Sent: 05-06-2020 13:11
From: Benjamin Kielas
Subject: BP in ECC Standard Method field

Hi Shuttlers,

Working with BP in ECC. Under Address tab Communication Standard Method (DDR1_DATA-DEFLT_COMM) when recording I am able to select or type in INT E-mail as the selection. The field is only a string of 3. In mapping it shows as INT.

My issue is when I go to run the script it dose not populate in both standard and Batch Mode. What am I not doing incorrectly?

Thanks for your help in advance.

------------------------------
Benjamin Kielas | SAP Data lead
Generac Power Systems, Inc. | 2625106580
------------------------------

Original Message------

Hi Ben

Sorry I didn't notice which section I was populating.  I now see that the communication method field is actually the same SAP field name under the covers - although there is a subtle difference in a sub screen name that we're not capturing
communications grouping

external communications group

we focus on the field data, which is identical, and the program name and screen number on the bottom (batch input), which is also identical.

This is a default recording mode script - non-batch.  I captured both sets of email and communication methods - mapping them to the same fields in excel,  here's what I see in step by step mode

So both of the email address are mapped, but only the last version of the communication method is filled in, because to the script they look identical.  IDK why it's the last version vs the first version of the field, but that is what is happening.

I tried recording in BATCH mode, and I got the same thing:

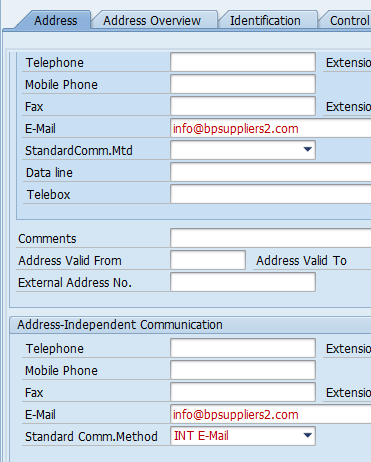

So then I tried GUI scripting mode, and that's when it worked - see both sets of emails and communication methods filled in (they're not in red in debug mode with GUI scripting).  Example script attached.

So overall batch and non-batch see communication method as the same field and is only filling in the last one.  GUI scripting works.  Also if you'd consider a BAPI instead of GUI scripting, then there is likely one for BP in ECC that would work.

Hope this helps,
Sigrid

------------------------------
Sigrid Kok
PSE | Winshuttle NA
------------------------------
